Nuvoton Technology Corporation M251SG6AE IC-4184-D
₹160.00
Out of stock

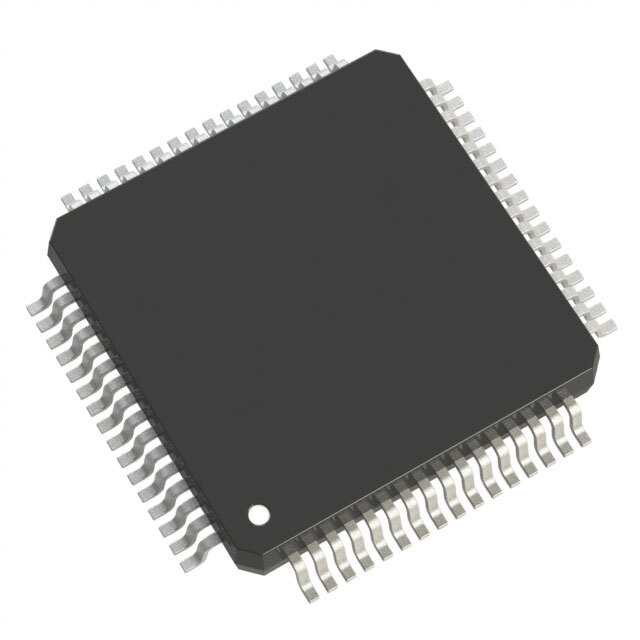

SPQ: 250, MOQ:2000, Product Package: LQFP64
Product Details
The NuMicro® M251/M252 series is a low-power microcontroller platform based on Arm® Cortex® M23 core for Armv8-M architecture. It runs up to 48 MHz with 32 ~ 256 Kbytes embedded Flash memory and 8 ~ 32 Kbytes embedded SRAM, 4 Kbytes Flash loader memory (LDROM) for In-System Programming (ISP). The 32-bit low-power microcontrollers supports wide supply voltage from 1.75V ~ 5.5V and operating temperature range from -40°C +105°C
Nuvoton M251SG6AE IC Microcontroller Application:-
- Smart Home / Smart Home Appliance
- Industrial Control / Industrial Automation
- Smart City
- IoT Device
- Security Alarm System
- Electronic Payments
- Communication Modules
- Portable Wireless Data Collector
- Smart Door Lock
- Handheld Medical Device
- GPS Location Tracker
- Electronic Shelf Labels (ESL)
Nuvoton M251SG6AE IC Microcontroller Key Features:-
- Supports up to 8 independently configurable channels
- Supports selectable 2 level of priority (fixed priority or round-robin priority)
- Supports transfer data width of 8, 16, and 32 bits
- Supports source and destination address increment size can be byte, half-word, word or no increment
- Request source can be from software,PSIO, SPI/I2S, UART, USCI, EADC,DAC,PWM capture event and TIMER
- Supports Scatter-gather mode to perform sophisticated transfer through the use of the descriptor link list table
- Supports single and burst transfer type
- Supports time-out function on channel 0 and channel1
- Supports stride function from channel 0 to channel 5
