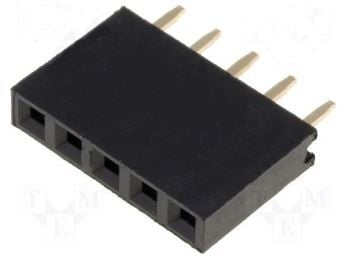

2.54mm Pitch Female Header Connector Height 8.5mm Y terminal - CO-1893-D
₹2.00
SPQ
100 MOQ
100 Visible Manufacture Name
KLS Electronics Visible Manufacturer’s code
KLS1-208 Weight (gm)
0.00068Stock Available
8 Choose Quantity
Product Details
Product Info:-
KLS1-208-1-XX-R-A
1-Single layer 2-Double layer 3-Three layer
XX-Total pin number (No.of 1~80pin)
S-Straight Pin R-Right Angle Pin T-SMT Pin
Material:A=PBT B="PA6T" C="LCP
Material:
Housing: 30% Glass filled PBT / PA6T UL94V-0
Contacts: Brass or Phosphor Bronze
Plating: Au or Sn over 50u" Ni
Electrical Characteristics:
Current Rating: 3 AMP
Insulator Resistance: 1000M Ohm min. at DC 1000V
Contact Resistance: 20m Ohm max.
Operating Temperature: -40ºC~+105ºC
Attachment:-
