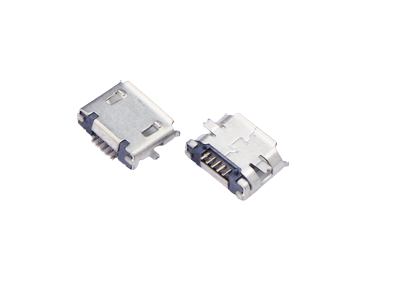

CONN RCPT 5POS MICRO USB DIP 5.9mm - CO-2421-D
Out of stock
₹10.00
SPQ
1000 MOQ
1 Visible Manufacture Name
L-KLS1-4245-B-R Visible Manufacturer’s code
L-KLS1-4245-B-R Weight (gm)
0.0014 Brand/MFR No
KLS Electronic/L-KLS1-4245-B-R Product Details
CONN RCPT 5POS MICRO USB DIP 5.9mm Material:-
- Housing:Hing Temperature Thermoplastic, UL94V-0 LCP,Black.
- Contact:Copper Alloy C2680.
- Shell:Copper Alloy C2680.
CONN RCPT 5POS MICRO USB DIP 5.9mm Finish:-
- Contact:Piated Gold In Mating Area;
- Tin On Solder Talls.
- Shell:Nickel Plating.
CONN RCPT 5POS MICRO USB DIP 5.9mm Electrical:-
- Current Rating:1.0A/Contact Terminal.
- Voltage Rating:30V DC
- Contact Resistance:50mΩ Max.
- Dielectric Withstanding Voltage:
- 300 V AC AT Sea Level.
- Insulation Resistance:100MΩ Min.
- Connector Mate and Unmated Force
- Mate Force:3.0kgf Max.
- Unmated Force:0.7kgf Min.
- Terminal Retenion:0.5kgf Min.
To know more about all latest Products of Micro USB Connectors you can visit at www.campuscomponent.com
Attachment:-
