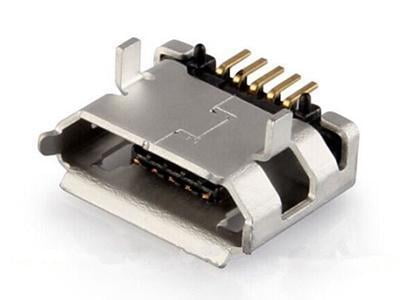

CONN RCPT 5POS MICRO USB DIP 5.9mm - CO-1905-D
Out of stock
₹4.00
SKU
CO-1905-D SPQ
100 MOQ
100 Visible Manufacture Name
UBINTEX Visible Manufacturer’s code
UBX1-4245 Weight (gm)
0.0014 Brand/MFR No
UBINTEX/UBX1-4245 Product Details
CONN RCPT 5POS MICRO USB DIP 5.9mm Material:-
- Housing: Hing Temperature Thermoplastics,UL94V-0 LCP, Black.
- Contact: Copper Alloy C2680.
- Shell: Copper Alloy C2680.
CONN RCPT 5POS MICRO USB DIP 5.9mm Electrical:-
- Current Rating:1.0A/Contact Terminal.
- Voltage Rating:30V DC
- Contact Resistance:50mΩ Max.
- Dielectric Withstanding Voltage:300 V AC AT Sea Level.
- Insulation Resistance:100MΩ Min.
- Connector Mate and Unmated Force
- Mate Force:3.0kgf Max.
- Unmated Force:0.7kgf Min.
- Terminal Retenion:0.5kgf Min.
To know more about all latest Products of Micro USB Connector you can visit at www.campuscomponent.com
Attachment:-
