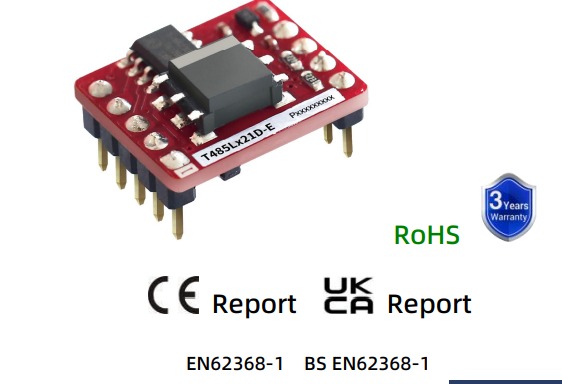

CLAF POWER Isolated Transceiver Module T485L521D-E - TR-4016-D
The CLAF POWER T485L521D-E is an isolated RS485 transceiver module integrating differential signal transmission, signal isolation, and isolated DC-DC power conversion. It operates from a 5V DC supply, supports data rates up to 500kbps, and provides 3000V DC isolation for industrial serial communication applications.
he CLAF POWER T485L521D-E is an isolated RS485 transceiver module designed for reliable serial communication in industrial and embedded systems. It integrates an RS485 transceiver, signal isolation, and an isolated DC-DC power supply into one module, simplifying circuit design and reducing the need for separate isolation components.
Operating from a 5V DC supply, the module supports data rates up to 500kbps and provides 3000V DC isolation between the logic and communication sides. Integrated bus protection helps improve robustness in electrically noisy environments and reduces the impact of ground-potential differences.
The T485L521D-E is suitable for programmable logic controllers, industrial automation equipment, energy meters, instrumentation, data acquisition systems, communication gateways, and embedded devices using RS485 networks.
Key Features
Interface: RS485 differential serial communication
Supply voltage: 5V DC
Maximum data rate: 500kbps
Isolation voltage: 3000V DC
Integrated isolated DC-DC power conversion
Integrated signal isolation
Built-in bus protection
Operating temperature: -40°C to +85°C
Supports multi-device RS485 communication networks
Applications
PLC and industrial controller communication
Industrial automation and process control
Smart energy meters and monitoring systems
Data acquisition and instrumentation
Industrial communication gateways
Embedded systems requiring isolated RS485 interfaces
Building automation and control equipment
