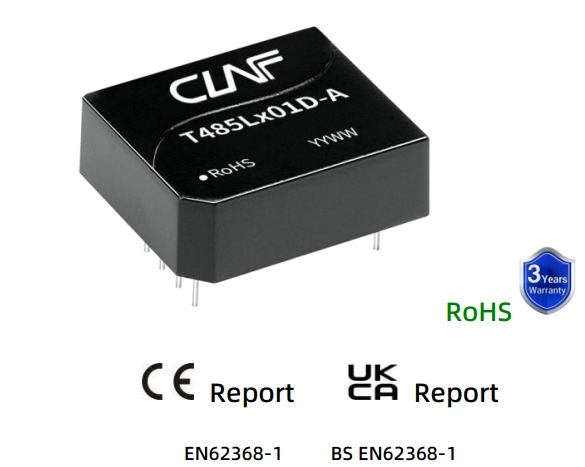

CLAF POWER Industrial Bus T485L501D-A - PO-3970-D
CLAF POWER T485L501D-A is an isolated RS-485 Industrial Bus module designed for reliable industrial communication, automation, power and control applications.
The CLAF POWER Industrial Bus T485L501D-A is an isolated RS-485 communication module designed for reliable data transmission in industrial applications. It integrates a high-efficiency isolated DC-DC converter and provides isolation and ESD protection for the RS-485 bus.
The T485L501D-A operates with a 4.75–5.25 VDC power input and supports a baud rate of up to 115200 kbps. The module provides a 2.5 kVDC two-port isolation test voltage and supports up to 32 nodes on the RS-485 bus. It also features automatic send and receive data functionality and an operating ambient temperature range of -40°C to +85°C.
Key Features:
- Isolated RS-485 Industrial Bus module
- 4.75–5.25 VDC power input
- Baud rate up to 115200 bps
- 2.5 kVDC two-port isolation
- Supports up to 32 nodes
- Integrated high-efficiency isolated DC-DC converter
- Isolation and ESD bus protection
- Automatic send and receive data function
- Operating temperature: -40°C to +85°C
- RoHS compliant
Applications:
- Industrial automation
- Industrial control systems
- Power equipment
- Communication systems
- Industrial instrumentation
- Data acquisition systems
- Monitoring and control equipment
