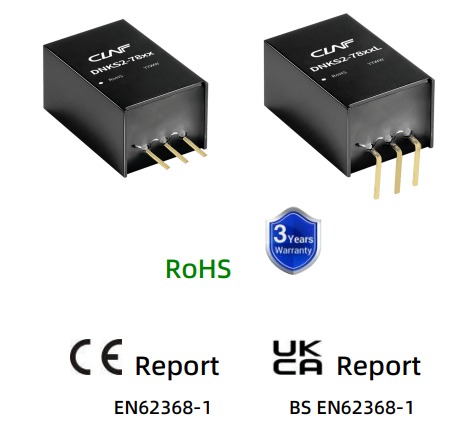

CLAF POWER Non Isolated DC/DC Converter DNKS2-7815 - PO-3955-D

CLAF POWER Non Isolated DC/DC Converter DNKS2-7815 - PO-3955-D

₹210.00
Out of stock

The CLAF POWER DNKS2-7815 is a 30W non-isolated DC-DC switching regulator designed to provide a regulated 15V DC output from an 18–36V DC input range. It supports output currents up to 2A and offers high-efficiency power conversion.

SPQ
1
MOQ
1
Visible Manufacture Name
CLAF POWER
Visible Manufacturer’s code
DNKS2-7815
Brand/MFR No
(Do not write any think here.It is for quotation display)
CLAF POWER DNKS2-7815
Add to Cart
Product Details

The CLAF POWER DNKS2-7815 is a non-isolated DC-DC switching regulator designed for applications requiring a stable 15V DC supply from a higher-voltage DC source. It operates over an 18–36V DC input range and delivers a maximum output current of 2A, with a rated output power of 30W.

The regulator uses switching conversion to reduce power loss compared with conventional linear regulation. Its high-efficiency design, low no-load power consumption, and short-circuit protection make it suitable for industrial electronics, embedded systems, instrumentation, and other DC-powered equipment.

The output can also be configured for negative-voltage applications, subject to the manufacturer's operating conditions and reduced output capability.

Key Features

  • Rated output power: 30W
  • Input voltage range: 18–36V DC
  • Output voltage: 15V DC
  • Maximum output current: 2A
  • Non-isolated DC-DC switching regulator
  • High efficiency: Up to 96% for the DNK series
  • Short-circuit protection
  • Low no-load power consumption
  • Compatible with LM78xx linear regulator pin configurations
  • Positive-to-negative conversion capability, subject to operating conditions

Applications

  • Industrial control systems
  • Embedded electronic equipment
  • Instrumentation and measurement systems
  • IoT devices
  • Smart-home electronics
  • Regulated 15V DC power circuits

CLAF POWER DNKS2-7815 Datasheet
