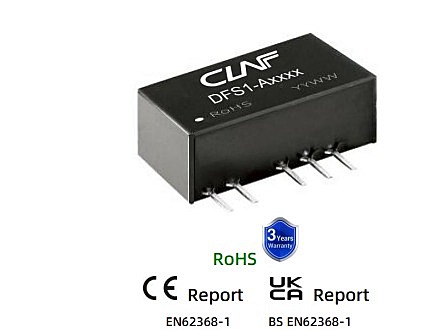

The Claf Power DFS1-A0512 is a compact and highly reliable 1W isolated DC/DC converter designed to provide efficient and stable power conversion for industrial, communication, instrumentation, and embedded electronic applications. Operating from a fixed 5V DC input, the converter delivers a regulated 12V DC output, making it suitable for powering analog circuits, communication interfaces, sensors, relay circuits, and other electronic devices that require isolated higher-voltage DC power.

Built with advanced switching technology, the DFS1-A0512 offers high conversion efficiency, excellent line and load regulation, and low ripple and noise, ensuring stable output performance for sensitive electronic circuits. The converter incorporates 1500VDC galvanic isolation between the input and output, protecting connected equipment from voltage transients, reducing electromagnetic interference (EMI), and eliminating ground loop issues commonly found in industrial and communication systems.

To improve operational reliability, the module includes continuous short-circuit protection, allowing safe operation during abnormal output conditions. Its low no-load power consumption helps improve overall energy efficiency, making it suitable for battery-powered and energy-efficient electronic equipment. The converter is housed in an industry-standard SIP package, enabling simple PCB mounting while minimizing board space requirements for compact product designs.

Designed for continuous operation in demanding environments, the DFS1-A0512 supports a wide operating temperature range of -40°C to +105°C, ensuring dependable performance under harsh industrial conditions. It is widely used in industrial automation equipment, embedded controllers, instrumentation systems, communication devices, IoT equipment, monitoring systems, medical electronics, data acquisition equipment, and isolated power supply applications.

With its compact footprint, industrial-grade reliability, high isolation capability, and long service life, the DFS1-A0512 is an ideal isolated DC/DC converter for OEM equipment manufacturers and professional electronic system designers.

Key Features

• 1W isolated DC/DC converter
• Fixed 5V DC input
• Regulated 12V DC output
• High conversion efficiency
• 1500VDC input-to-output isolation
• Continuous short-circuit protection
• Low ripple and noise output
• Excellent line and load regulation
• Low no-load power consumption
• Industry-standard SIP package
• Operating temperature: -40°C to +105°C
• Compact PCB-mount design
• Industrial-grade reliability
• Easy PCB integration
• Long operational life

Applications

• Industrial automation systems
• Embedded systems
• Communication equipment
• Instrumentation systems
• Industrial control equipment
• Sensor interface circuits
• Relay drive circuits
• Data acquisition systems
• IoT devices
• Medical electronics
• Power management systems
• Isolated power supply circuits

Claf Power DC/DC Converter DFS1-A0512 Datasheet
