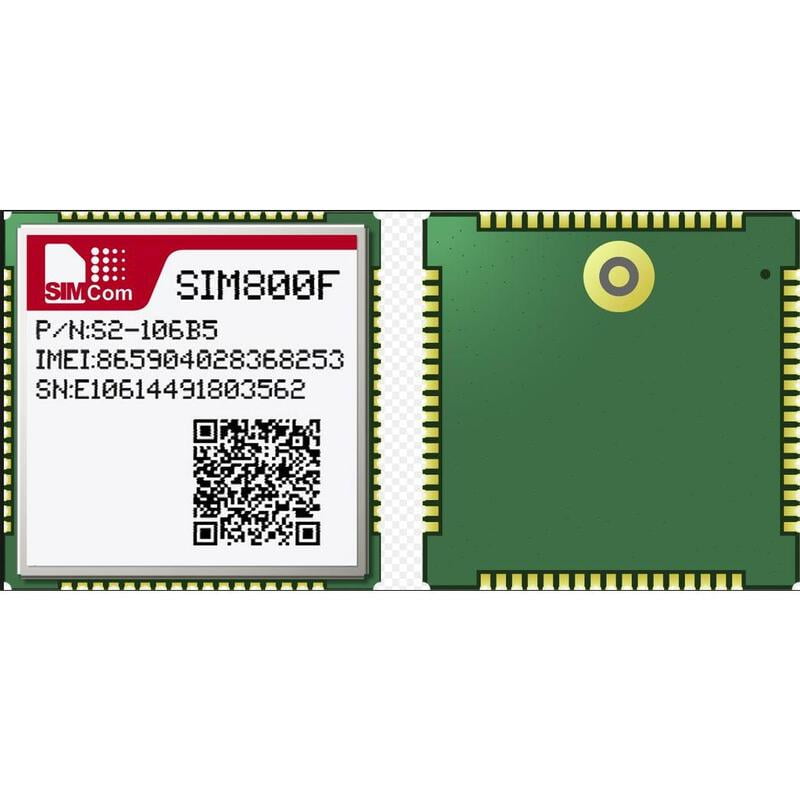

SIMCOM Wireless Solution SIM800F-(2G Module)-WI-114-D

SIM800F is a complete Quad-band GSM/GPRS solution in a SMT type, which can be embedded in the customer applications. SIM800F supports Quad-band 850/900/1800/1900MHz, it can transmit Voice, SMS and data information with low power consumption. With tiny size of 24*24*3mm, it can smoothly fit into slim and compact demands of customer design.

Get the high-quality SIM800F Wireless Module at the best price in India.

SIM800F General Features:-

• Quad-Band 850/900/1800/1900MHz
• GPRS multi-slot class 12/10
• GPRS mobile station class B
• Compliant to GSM phase 2/2+
• Class 4 (2 W @850/900MHz)
• Class 1 (1 W @1800/1900MHz)
• Dimensions: 24*24*3mm
• Weight: 3.1g
• Control via AT commands
• (3GPP TS 27.007, 27.005 and SIMCom enhanced AT Commands)
• Supply voltage range 3.4 ~ 4.4V
• Low power consumption
• Operation temperature:-40 ~85

SIM800F Specifications for GPRS Data:-

• GPRS class 12: max. 85.6 kbps (downlink/uplink)
• PBCCH support
• Coding schemes CS 1, 2, 3, 4
• PPP-stack
• USSD

• Point to point MO and MT
• SMS cell broadcast
• Text and PDU mode

• 0710 MUX protocol
• Embedded TCP/UDP protocol
• FTP/HTTP
• MMS
• POP3/SMTP
• DTMF
• Jamming Detection
• Audio Record
• SSL
• Bluetooth 3.0 (optional) Specifications for voice
