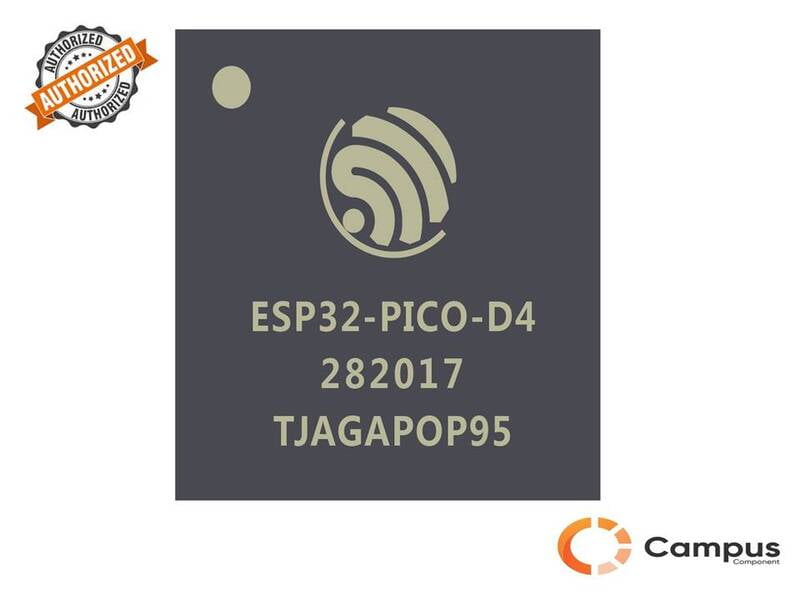

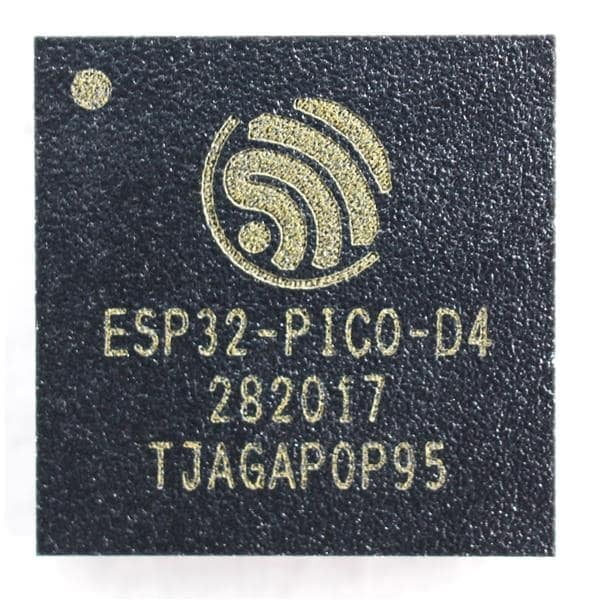

ESP32 PICO D4-WI-455-D

The ESP32-PICO-D4 is a System-in-Package (SiP) module that is based on ESP32, providing complete Wi-Fi and Bluetooth functionalities. The module has a size as small as (7.000±0.100) mm × (7.000±0.100) mm ×(0.940±0.100) mm, thus requiring minimal PCB area. The module integrates a 4-MB SPI flash.

At the core of this module is the ESP32 chip*, which is a single 2.4 GHz Wi-Fi and Bluetooth combo chip designed

with TSMC’s 40 nm ultra-low power technology. ESP32-PICO-D4 integrates all peripheral components seamlessly,

including a crystal oscillator, flash, filter capacitors and RF matching links in one single package. Given that no other

peripheral components are involved, module welding and testing is not required either. As such, ESP32-PICO-D4

reduces the complexity of supply chain and improves control efficiency.

With its ultra-small size, robust performance and low-energy consumption, ESP32-PICO-D4 is well suited for any

space-limited or battery-operated applications, such as wearable electronics, medical equipment, sensors and

other IoT products.
