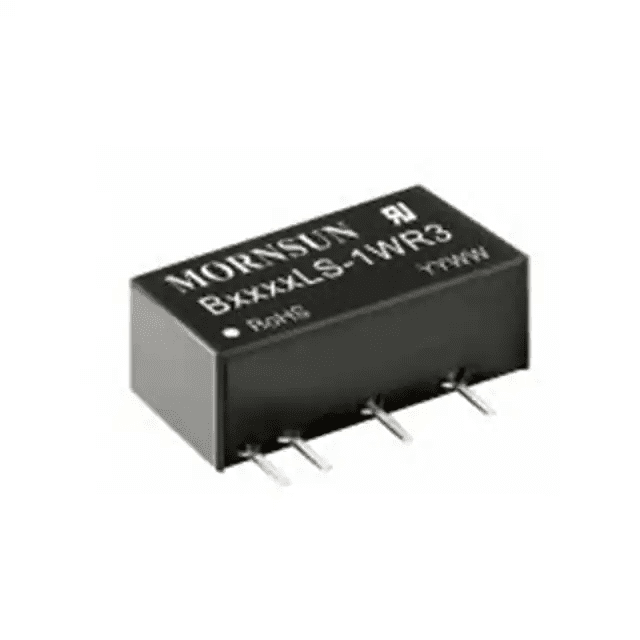

B0524S-1WR3 : 1W,24V Isolated DC-DC Converter - PO-1966-D
₹95.00
Out of stock
Product Details
1.Features of DC-DC Converter:-
- Continuous short-circuit protection
- No-load input current as low as 5mA
- Operating temperature range: -40℃ to +105℃ High efficiency up to 85%
- Isolation voltage:1.5K VDC/min, 3K VDC/1s
- International standard pin-out Compact SIP package UL62368, EN62368 approval
2.Mechanical Data of DC-DC Converter:-
- Inputs: 5V to 24Vdc
- Outputs: 3V3 to 24V dc
- Power: 1 Watt
- Tamb: -40°C to +105°C
- Dims: 11.60 x 6.00 x 10.16 mm
- 1500V Isolation, 3kV (1 sec)
