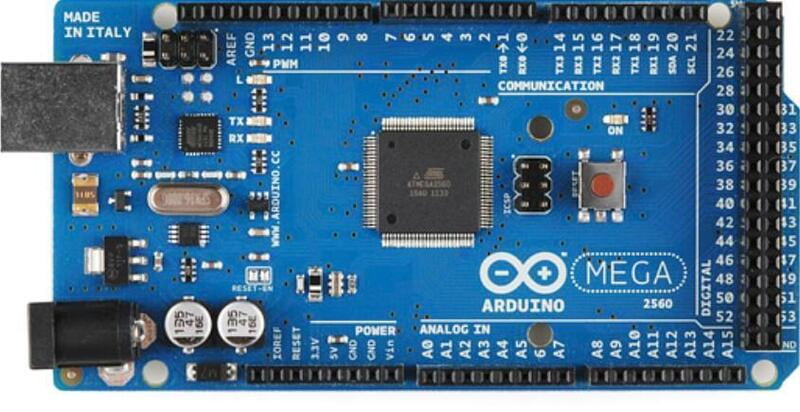

Arduino Mega 2560 R3 Compatible Board-AR-817-D
The Arduino Mega Compatible Board is a microcontroller board based on the ATmega2560.It has 54 digital input/output pins (of which 14 can be used as PWM outputs), 16 analog inputs, 4 UARTs (hardware serial ports), a 16 MHz crystal oscillator, a USB connection, a power jack, an ICSP header, and a reset button.
Arduino Mega Compatible Board contains everything needed to support the microcontroller; simply connect it to a computer with a USB cable or power it with a AC-to-DC adapter or battery to get started.
Get the high-quality Arduino Mega 2560 R3 Board at the best price in India.
The Arduino Mega Compatible Board Mega is compatible with most shields designed for the Arduino Duemilanove or Decimal. The Mega 2560 R3 also adds SDA and SCL pins next to the AREF. In addition, there are two new pins placed near the RESET pin. One is the IOREF that allow the shields to adapt to the voltage provided from the board. The other is a not connected and is reserved for future purposes. The Mega 2560 R3 works with all existing shields but can adapt to new shields which use these additional pins.
Arduino Mega 2560 R3 Board Specifications:-
- Microcontroller:- ATmega2560
- Operating Voltage:- 5V
- Input Voltage (recommended):- 7-12V
- Input Voltage (limit):- 6-20V
- Digital I/O Pins:- 54 (of which 15 provide PWM output)
- Analog Input Pins:- 16
- DC Current per I/O Pin:- 20 mA
- DC Current for 3.3V Pin:- 50 mA
- Flash Memory:- 256 KB of which 8 KB used by bootloader
- SRAM:- 8 KB
- EEPROM:- 4 KB
- Clock Speed:- 16 MHz
- LED_BUILTIN:- 13
