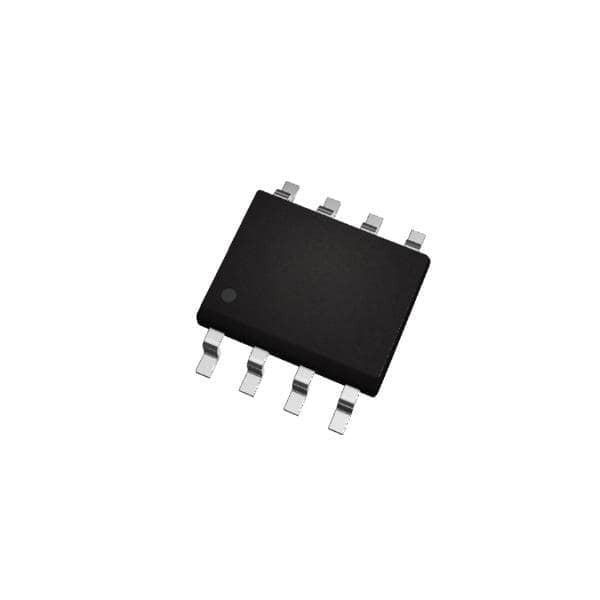

AIT Semiconductor AO358M8VR SOP8 - IC-3573-D

AIT Semiconductor OP Amplifier AO358M8VR - IC-3573-D

₹7.80
Out of stock
SPQ: 3000, MOQ:1, Product Package: SOP8
SPQ
3000
MOQ
1
Visible Manufacture Name
AIT Semiconductor
Visible Manufacturer’s code
AO358M8VR
Brand/MFR No
AIT Semiconductor/AO358M8VR
Add to Cart
Product Details
Get the high-quality AIT Semiconductor AO358M8VR at the best price in India.

The AO358 is include two high-voltage (30V) OP Amp. The AO358 provide outstanding value for cost-effective applications, with features including low offset (500uA, typical) common-mode input range to ground, and high differential input voltage capability. The AO358 design with enhanced features such as unity-gain stability, lower offset voltage of 5mV (Max), and lower quiescent current of 500uA per amplifier (typical), which to provide optimal performance in low voltage and low noise systems.

AO358M8VR Features and Specifications:-
  • Single-Supply Operation from +3V to +30V
  • Quiescent Current: 500μA per Amplifier (Typ.)
  • Unity-gain bandwidth of 1MHz (Typ.)
  • Low Offset Voltage: 5mV (Max.)
  • Low Input Bias Current: 45nA (Typ.)
  • Dual-Supply Operation from ±1.5V to ±15V
  • Operating Temperature: -25°C ~ +85°C
  • Available in SOP8 and MSOP8 packages
