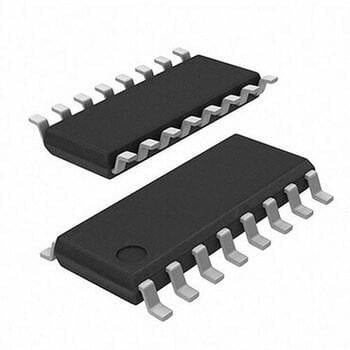

AIT Semiconductor MOSFET AG2113M16VR SOP16 - IC-3561-D
SPQ: 1500, MOQ:1, Product Package: SOP16
₹104.00
SPQ
1500 MOQ
1 Visible Manufacture Name
AIT Semiconductor AG2113M16VR Visible Manufacturer’s code
AG2113M16VR Brand/MFR No
AIT Semiconductor AG2113M16VR AG2113M16VR Choose Quantity
Product Details
Get the high-quality AIT Semiconductor AG2113M16VR at the best price in India.
The AG2113 is a high voltage, high speed power MOSFET and IGBT driver with independent high and low side referenced output channels based on P_SUB P_EPI process. The floating channel can be used to drive an N-channel power MOSFET or IGBT in the high side configuration which operates up to 600V. Logic inputs are compatible with standard CMOS or LSTTL output, down to 3.3V logic.
AG2113M16VR Specification:-
- Fully operational to +600V
- 3.3V logic compatible
- Floating channel designed for bootstrap operation
- Gate drive supply range from 10V to 20V
- UVLO for both channels
- Output Source / Sink Current Capability 3.0A /3.5A
- Separate logic supply range from 5.0V to 20V
- -6V negative Vs ability
