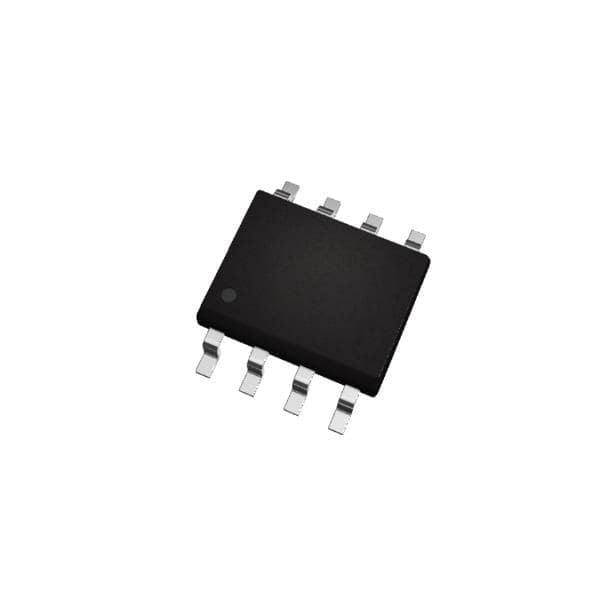

AIT Semiconductor DC-DC Buck Converter A7442MP8VR PSOP8 - IC-3567-D
₹52.00
SPQ: 4000, MOQ:1, Product Package: PSOP8
Product Details
Get the high-quality AIT Semiconductor A7442MP8VR at the best price in India.
A7442 is a High Efficiency Synchronous DC-DC Buck Converters with CV / CC modes, which can output up to 4.2 A in a wide input range from 6 V to 36 V. The A7442 operates either in CV (Constant Voltage) mode or CC (Constant Current) mode. With the CV / CC mode, adjustable current limit and output voltage, the A7442 is particularly suitable for QC 2.0 / 3.0 (12V / 1.5A, 9V / 2A and 5V / 3A), Type-C PD (5 V / 3 A) and Apple portable device (5V / 2.4A) applications. The output voltage and CC limit can be programed through the FB, CSP and CSN pins respectively.
A7442MP8VR Features and Specification:-
- Wide Input Supply Voltage Range of 6V ~ 40V
- Up to 4.2A Output Current
- Up to 95 % Efficiency
- 130kHz Fixed Switching Frequency
- Internal Soft-start Circuitry
- Compensation for Output Cord Voltage Drop
- Input Under Voltage Lockout
- Input Over Voltage Protection
- Adjustable Constant Current Limit
- Output Over Voltage Protection
- Output Auto Discharge
