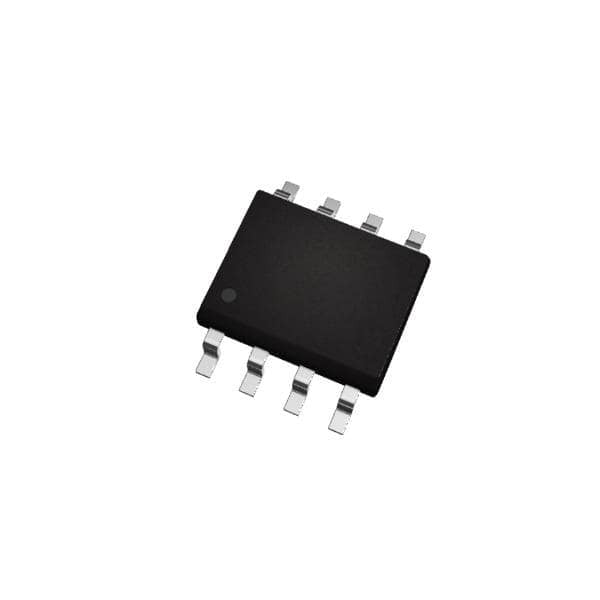

AIT Semiconductor DC-DC Buck Converter A7425M8VR SOP8 - IC-3554-D
₹26.00
SPQ: 4000, MOQ:1, Product Package: SOP8
Product Details
Get the high-quality AIT Semiconductor A7425M8VR SOP8 at the best price in India.
A7425 is a wide input voltage, high efficiency current mode Synchronous step-down DC/DC converter. A7425 provides up to 2.5A output current at 500kHz switching frequency. A7425 integrates a 130mΩ high side and an 80mΩ low side MOSFET to achieve high conversion efficiency up to 96%. The current mode control architecture supports fast transient response and simple compensation circuit. Protection features include cycle-by-cycle current limit, thermal shutdown, and short circuit protection.
AIT Semiconductor A7425M8VR SOP8 Specifications:-
- Up to 40V Input Surge Voltage
- Continuous Operating Input Voltage up to 36V
- Up to 2.5A Output Current
- 500kHz Switching Frequency
- Up to 96% Efficiency
- Stable with Low-ESR Ceramic Output Capacitors
- Resistor Programmable High-Side MOSFET Peak Current Limit from 1.0A to 3.5A
