AIT Semiconductor A7406BE6R DC DC Step Down Buck Converter

AIT Semiconductor A7406BE6R DC DC Step Down Buck Converter- IC-603-D

Non-returnable
₹22.00
Out of stock

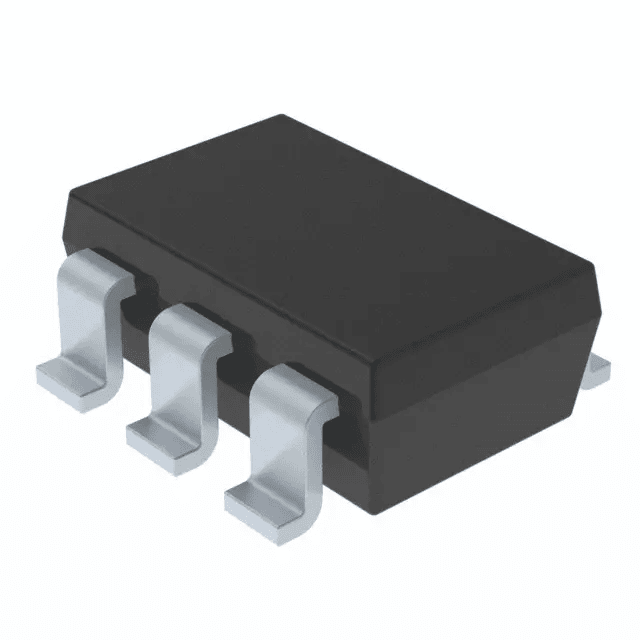

SPQ:,MOQ:1,Product Package:SOT 26 Package
SPQ
0
MOQ
1
Visible Manufacture Name
AiT semiconductor
Visible Manufacturer’s code
A7406BE6R
Weight (gm)
0.002
Brand/MFR No
AiT semiconductor/A7406BE6R
Add to Cart
Product Details
Get the high-quality A7406BE6R_DC-DC CONVERTER BUCK (STEP-DOWN) at the best price in India.


The A7406B is a wide input range, high-efficiency, and high-frequency DC-to-DC step-down switching regulator, capable of delivering up to 0.6A of output current. With a fixed switching frequency of 1.6MHz, this current mode PWM-controlled converter allows the use of small external components, such as ceramic input and output caps, as well as small inductors. Including cold crank and double battery jump-starts, the minimum input voltage may be as low as 4.5V and the maximum up to 45V, with even higher transient voltages. With these high input voltages, linear regulators cannot be used for high supply currents without overheating the regulator. Instead, high-efficiency switching regulators such as A7406B must be used to minimize thermal dissipation.


A7406BE6R_DC-DC CONVERTER BUCK (STEP-DOWN) Features:-
  • Wide Input Operating Range from 4.5V to 45V
  • 420mΩ internal NMOS
  • Up to 95% Efficiency at 16V in 12V out L="47uH" with 300mA loading
  • Internal compensation
  • Capable of Delivering 600mA continuous output current
  • Fixed 1.6MHz PWM operation
  • Internal soft start
  • Output voltage adjustable down to 0.795V
  • Cycle-by-cycle current limit
  • Current Mode control
  • Short-circuit protection
  • Logic Control Shutdown EN can be short to VIN
  • Thermal shutdown and UVLO
  • Available in SOT-26 Package

Explore all the Latest Products of AIT Semiconductor
