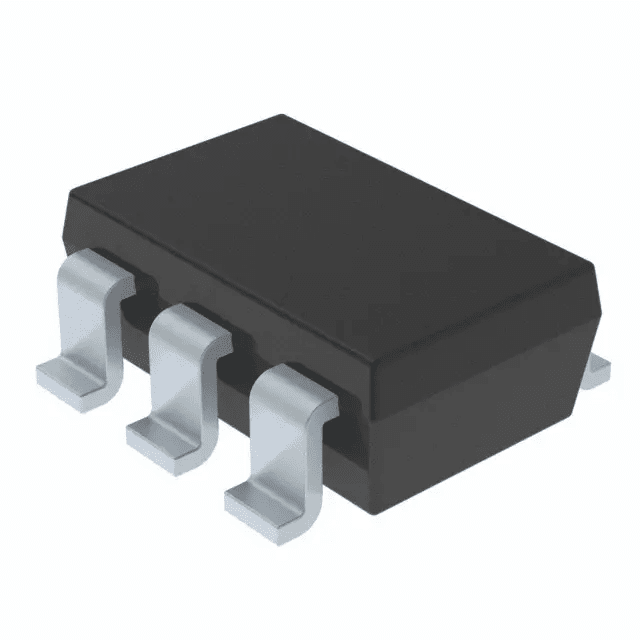

AIT Semiconductor DC-DC Buck Converter A7222BE6VR - IC-3578-D
₹15.60
SPQ: 3000, MOQ:1, Product Package: SOT-26
SPQ
3000 MOQ
1 Visible Manufacture Name
AIT Semiconductor Visible Manufacturer’s code
A7222BE6VRStock Available
14 Choose Quantity
Product Details
Get the high-quality AIT Semiconductor A7222BE6VR at the best price in India.
The A7222B is a fully integrated, high-efficiency 2A synchronous rectified step-down converter. The A7222B operates at high efficiency over a wide output current load range. This device offers two operation modes, PWM control and PFM Mode switching control, which allows a high efficiency over the wider range of the load.
A7222BE6VR Specification:-
- High Efficiency: Up to 96%
- 1MHz Frequency Operation
- 2A Output Current
- No Schottky Diode Required
- 4.2V to 18V Input Voltage Range
- 0.8V Reference
- Slope Compensated Current Mode Control for Excellent Line and Load Transient Response
- Integrated internal compensation
- Stable with Low ESR Ceramic Output Capacitors
- Over Current Protection with Hiccup-Mode
