AIT Semiconductor Battery Management A4056BE5VR - IC-3576-D
₹19.40

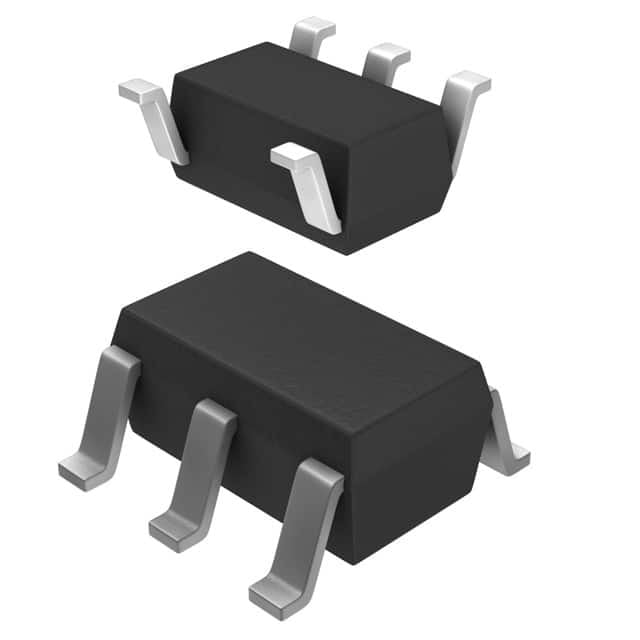

SPQ: 3000, MOQ:1, Product Package: SOT25
SPQ
3000 MOQ
1 Visible Manufacture Name
AIT Semiconductor Visible Manufacturer’s code
A4056BE5VRStock Available
20 Choose Quantity
Product Details
Get the high-quality AIT Semiconductor A4056BE5VR at the best price in India.
The A4056B is a complete constant-current /constant-voltage linear charger for single cell lithium-ion batteries. Its SOT package and low external component count make the A4056B ideally suited for portable applications especially in USB power specifications. Internal MOSFET architecture makes A4056B no external sense resistor needed, and no blocking diode is required. Thermal feedback regulates the charge current to limit the die temperature during high power operation or high ambient temperature. The charge voltage is fixed at 4.2V, and the charge current can be programmed externally with a single resistor. The A4056B automatically terminates the charge cycle when the charge current drops to 1/10th the programmed value after the final float voltage is reached.
A4056BE5VR Specification:-
- Programmable Charge Current Up to 500mA
- No MOSFET, Sense Resistor or Blocking Diode Required
- Complete Linear Charger in SOT Package for single Cell Lithium-Ion Batteries
- Constant-Current/Constant-Voltage Operation with Thermal Regulation to Maximize Charge Rate Without Risk of Overheating
- Charges Single Cell Li-Ion Batteries Directly from USB Port
- Preset 4.2V Charge Voltage with ±1% Accuracy
- Charge Current Monitor Output for Gas Gauging
- Automatic Recharge
- Charge Status Output Pin
