AIT Semiconductor A3085AM8VR - TR-3521-D
₹24.00
SPQ: 3000, MOQ:1, Product Package:SOP8
SPQ
3000 MOQ
1 Visible Manufacture Name
AIT Semiconductor Visible Manufacturer’s code
A3085AM8VRStock Available
14 Choose Quantity
Product Details
Get the high-quality AIT Semiconductor A3085AM8VR at the best price in India.
The A3085A is a half-duplex RS-485 transceiver with ±15kV IEC 61000-4-2 contact ESD protection. This device contains one driver and one receiver. The A3085A includes fail-safe circuitry, which guarantees a logic-high receiver output when the receiver inputs are open or shorted. This means that the receiver output will be logic high even if all transmitters on a terminated bus are disabled. The A3085A features reduced slew-rate driver that minimizes EMI and reduces reflections caused by improperly terminated cables, allowing error-free data transmission up to 500kbps.
AIT Semiconductor A3085AM8VR Specifications:-
- +3.3V or +5V Operation
- True Fail-Safe Receiver
- Maximum Data Rate: 500kbps (VCC=5V) 250kbps (VCC=3.3V)
- Allow Up to 256 Transceivers on the Bus
- I/O Pins ESD Protection: ±15kV IEC 61000-4-2, Contact Discharge

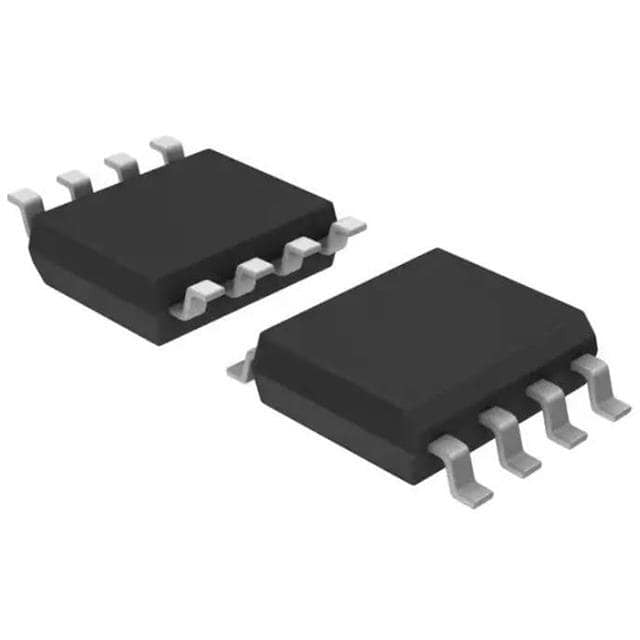

- Available in SOP8 package
