AIT Semiconductor AO1612E5R SOT-25 - IC-3572-D
₹39.00

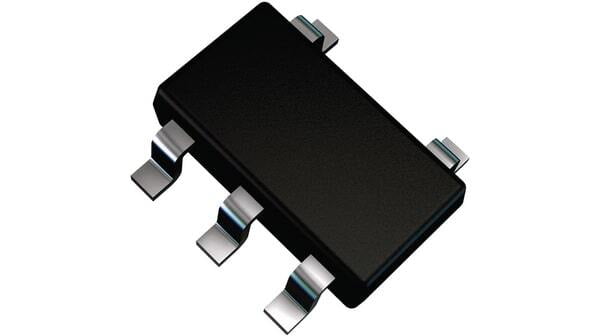

SPQ: 3000, MOQ:3000, Product Package: SOT-25
SPQ
3000 MOQ
3000 Visible Manufacture Name
AIT Semiconductor Visible Manufacturer’s code
A01612E5R Brand/MFR No
AIT Semiconductor/A01612E5RStock Available
50 Choose Quantity
Product Details
Get the high-quality AIT Semiconductor A01612E5R at the best price in India.
The AO1612 amplifier is single supply, micropower, zero-drift CMOS operational amplifiers, the amplifiers offer bandwidth of 1.8MHz, rail-to-rail inputs and outputs, and single supply operation from 1.8V to 5.5V. AO1612 uses chopper stabilized technique to provide very low offset voltage (less than 5μV maximum) and near zero drift over temperature. Low quiescent supply current of 220μA per amplifier and very low input bias current of 20pA make the devices an ideal choice for low offset, low power consumption and high impedance applications.
AIT Semiconductor A01612E5R Features and Specification:
- Single-Supply Operation from +1.8V ~ +5.5V
- Rail-to-Rail Input / Output
- Gain-Bandwidth Product: 1.8MHz(Typ.@25℃)
- Low Input Bias Current: 20pA (Typ.@25℃)
- Low Offset Voltage: 5μV (Max. @25℃)
- Quiescent Current: 220μA per Amplifier (Typ.)
- Operating Temperature: -45℃ ~ +125℃
- Zero Drift: 0.005μV/℃ (Typ.)
- Embedded RF Anti-EMI Filter
