A7332MP8R_DC-DC CONVERTER BUCK (STEP-DOWN)-IC-602-D
Non-returnable
₹17.00
Out of stock

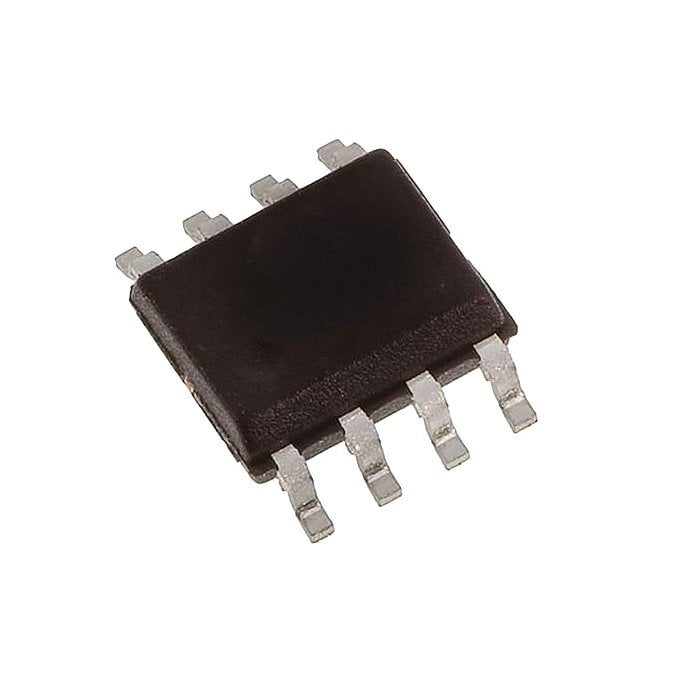

SPQ:,MOQ:1,Product Package:�PSOP8 package
Product Details
The A7332 is a synchronous step-down DC/DC converter that provides wide 4.2V to 30V input voltage range and 3A continuous load current capability. At light load condition, the A7332 can operate at power saving mode to support high efficiency and reduce power loss. The A7332 fault protection includes cycle-by-cycle current limit, UVLO and thermal shutdown. Besides, soft-start function prevents inrush current at turn-on. This device uses current mode control scheme which provides fast transient response. Internal compensation function reduces external compensator components and simplifies the design process. In shutdown mode, the supply current is about 3μA.
Get the high-quality A7332MP8R_DC-DC CONVERTER BUCK (STEP-DOWN) at the best price in India.
A7332MP8R_DC-DC CONVERTER BUCK (STEP-DOWN) Features:-
- Low RDS(ON) Integrated Power MOSFET (120/60mΩ)
- Internal Compensation Function
- Wide Input Voltage Range: 4.2V to 30V
- 3A Output Current
- Internal 1ms Soft-Start
- High Efficiency at Light Load
- Cycle-by-Cycle Current Limit
- Over-Temperature Protection with Auto Recovery
- Under Voltage Lockout
- 3μA Shutdown Current
- Hiccup Short Circuit Protection
- Available in PSOP8 Package
A7332MP8R_DC-DC CONVERTER BUCK (STEP-DOWN) Applications:-
- LCD Display, TV
- STB (Set-Top-Box)
- Distributed Power System
- Networking, XDSL Modem
