AiT Semiconductor A6141K3VR-33B Low Dropout Voltage Regulator-IC-622-D
Non-returnable
₹20.00
SPQ:,MOQ:1,Product Package:SOT 89-3 package
SPQ
0 MOQ
1 Visible Manufacture Name
AiT semiconductor Visible Manufacturer’s code
A6141K3R-50B Weight (gm)
0.002 Brand/MFR No
AiT semiconductor/A6141K3R-50BStock Available
20 Choose Quantity
Product Details
A6141 series is a group of positive voltage output, low power consumption, low dropout voltage regulator. It can provide 150mA output current when input / output voltage differential drops to 400mV (VOUT= 5V), and it also provides foldback short-circuit protection, thermal protection and output current limit function. The very low power consumption of A6141 (Iq=2.5uA) can greatly improve natural life of batteries.
Get the high-quality A6141K3R-50B_Low dropout voltage regulator at the best price in India.
A6141 can provide output value in the range of 1.2V~5.0V in 0.1V steps. It also can customize on command. A6141 includes high accuracy voltage reference, error amplifier, current limit circuit and output driver module. A6141 has well load transient response and good temperature characteristic. A6141 uses trimming technique to guarantee output voltage accuracy within±2%.
A6141K3R-50B_Low dropout voltage regulator Features:-
- Low Power Consumption: 2.5uA(Typ.)
- Maximum Output Current: 150mA
- Small Dropout Voltage 400mV@100mA (VOUT=5V)
- Input Voltage Range: 3V~40V
- Output Voltage Range: 1.2V~5.0V (VOUT>5V customized)
- Highly Accurate:±2%(±1% customized)
- Output Current Limit: 180mA

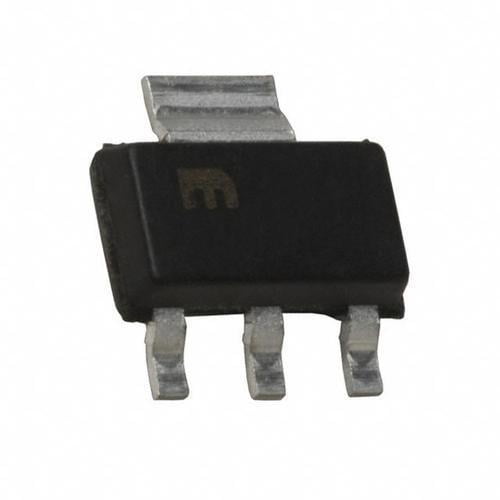

- Available in SOT89-3 package
A6141K3R-50B_Low dropout voltage regulator Applications:-
- Battery Powered equipment
- Power Management of MP3、PDA、DSC、 Mouse、PS2 Games
- Reference Voltage Source Regulation after Switching Power
