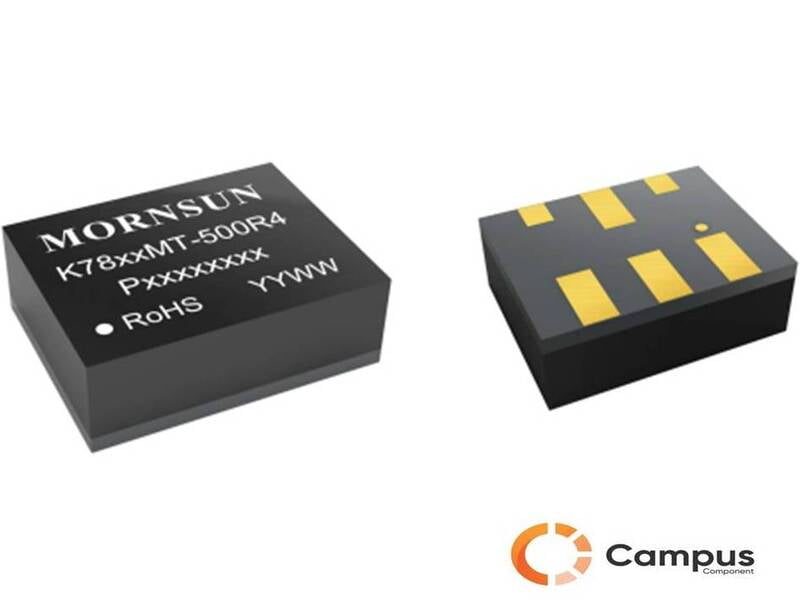

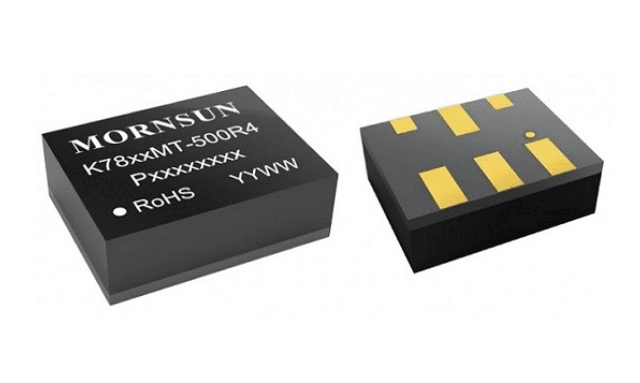

K7805MT-500R4: 5V, 0.5A Non Isolated Dc-Dc Converter - PO-1729-D
Non-returnable
₹90.00
SKU
PO-1729-D SPQ
1 MOQ
1 Visible Manufacture Name
MORNSUN Visible Manufacturer’s code
K7805MT-500R4: 5V, 0.5A Weight (gm)
0.006Stock Available
45 Choose Quantity
Product Details
K78_MT-500R4 series are high efficiency switching regulators. The converters feature high efficiency, low loss and short-circuit protection in a compact DFN package. These products are widely used in applications such as industrial control, instrumentation and electric power .
- Ultra-small, ultra-thin DFN package(9.00 x 7.00 x 3.10mm)
- Operating ambient temperature range: -40℃ to +105℃
- High efficiency up to 92%
- No-load input current as low as 0.1mA
- Output short-circuit protection
- Meets AEC-Q100 (under testing)
- EN62368 approved
2) MECHANICAL SPECIFICATIONS :
- Case Material : Black epoxy resin; flame-retardant and heat-resistant(UL94 V-0)
- Dimensions : 9.00 ×7.00 × 3.10mm
- Weight : 0.58g(Typ.)
- Cooling Method : Free air convection
3) DATASHEET :
