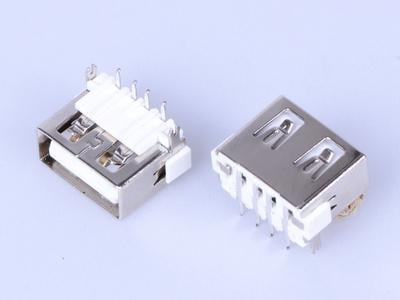

A Female Dip 90 USB Connector L10.0mm UBX1 - CO-1888-D
₹1.50
SKU
CO-1888-D SPQ
1000 MOQ
1 Visible Manufacture Name
UBINTEX Visible Manufacturer’s code
UBX1-185 Weight (gm)
0.0014 Brand/MFR No
UBINTEX/UBX1-185Stock Available
3711 Choose Quantity
Product Details
A Female Dip 90 USB Connector L10.0mm UBX1 Material:-
- Housing: Hing Temperature Thermoplastic, UL94V-0 PBT, Black/White.
- Contact: Copper Alloy C2680.
- Shell: Copper Alloy C2680/SPCC.
A Female Dip 90 USB Connector L10.0mm UBX1 Finish:-
- Contact :Plated Gold In Mating Area; Tin On Solder Tails.
- Shell: Nickel Plating.
A Female Dip 90 USB Connector L10.0mm UBX1 Electrical:-
- Current Rating:1.5A/Contact Terminal.
- Voltage Rating:30V DC
- Contact Resistance:30mΩ Max.
- Dielectric Withstanding Voltage: 500 V AC AT Sea Level.
- Insulation Resistance:1000MΩ Min.
- Connector Mate and Unmated Force
- Mate Force:3.75kgf Max.
- Unmated Force:1.02kgf Min.
- Terminal Retenion:1.2kgf Min.
