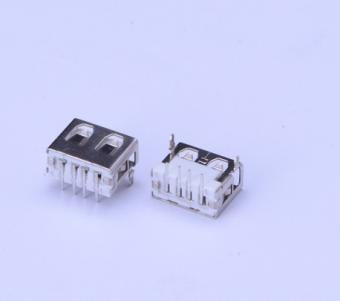

A Female Dip 90 USB Connector L10.0mm - CO-1889-D
₹3.00
SKU
CO-1889-D SPQ
1000 MOQ
1 Visible Manufacture Name
UBINTEX/UBX1-1804 Visible Manufacturer’s code
UBX1-1804 Brand/MFR No
UBINTEXStock Available
4859 Choose Quantity
Product Details
A Female Dip 90 USB Connector L10.0mm Material:-
- Housing: Hing Temperature Thermoplastic, UL94V-0 PBT, Black/White.
- Contact: Copper Alloy C2680.
- Shell: Copper Alloy C2680/SPCC.
Get the high-quality A Female Dip 90 USB Connector L10.0mm at the best price in India.
A Female Dip 90 USB Connector L10.0mm Finish:-
- Contact: Plated Gold In Mating Area; Tin On Solder Tails.
- Shell: Nickel Plating.
A Female Dip 90 USB Connector L10.0mm Electrical:-
- Current Rating:1.5A/Contact Terminal.
- Voltage Rating:30V DC
- Contact Resistance:30mΩ Max.
- Dielectric Withstanding Voltage: 500 V AC AT Sea Level.
- Insulation Resistance:1000MΩ Min.
- Connector Mate and Unmated Force
- Mate Force:3.75kgf Max.
- Unmated Force:1.02kgf Min.
- Terminal Retention:1.2kgf Min.
