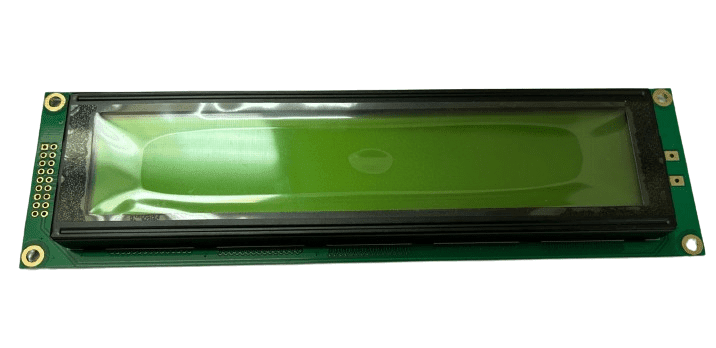

40x2 (S) Yellow green Backlight - LC-1722-D
₹690.00
SPQ
50 MOQ
1 Visible Manufacture Name
SINDA Display Visible Manufacturer’s code
SDCB40002-01 Weight (gm)
0.15kgStock Available
248 Choose Quantity
Product Details
40x2 (S) Yellow green Backlight Features:-
- Display Contents : 40* 2 Characters (5*8 dots )
- Driving Scheme : 1/16Duty; 1/5Bias
- Driver IC : AIP31066
- Interface : Parallel
- Backlight : Yellow-Green z Operating Temperature :-20 C-﹢70 C
- Storage Temperature :-30 C-﹢80 C z RoHS Compliant
Get the high-quality 40x2 (S) Yellow green Backlight at the best price in India.
40x2 (S) Yellow green Backlight Specifications:-
- Outline Dimensions : 182.00(W) x 33.50(L) x 14.00(H)(mm)
- Viewing Area : 154.40 (W) x 16.50(L)(mm)
- Active Area : 147.50 (W) x 11.50 (L)(mm)
- Character Size : 3.20 (W) x 5.55 (L)(mm)
- Character Pitch : 3.70 (W) x 5.95 (L)(mm)
- Dot Size : 0.60 (W) x 0.65 (L)(mm)
- Dot Pitch : 0.65 (W) x 0.70 (L)(mm)
