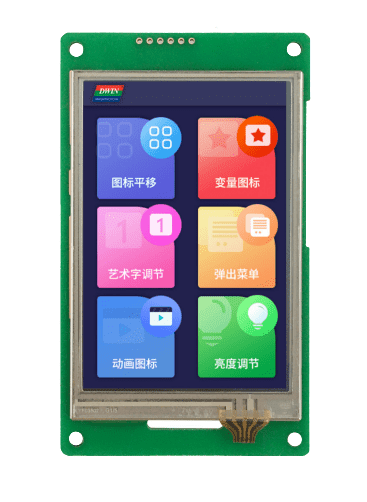

3.5" DWIN smart LCM DMG48320C035-03WTR - LC-2848-D
₹1,794.00
SPQ
1 MOQ
1 Visible Manufacture Name
DWIN Visible Manufacturer’s code
DMG48320C035-03WTR Weight (gm)
0.065kgStock Available
5 Choose Quantity
Product Details
3.5 inch smart LCM DMG48320C035_03WTR Features:-
- Self-designed T5L ASIC, 16.7M Colors, 24bit,320*480 Pixel, G+G structure
- Without touch screen/Resistive touch screen/Capacitive touch screen
- TTL/CMOS;10Pin_1.0mm
- Download via SD card or on-line serial port
- It is very easy to use the DWIN DGUS V7.6 GUIs Development, no coding skills required
- Two Development System: DGUS II/ TA(Instruction set)
- IPS wide viewing angle: 85°/85°/85°/85° (L/R/U/D)
- Based on T5L1, running DGUS II system, commercial grade.
- 3.5-inch, 320*480 pixels resolution, 16.7M colors, IPS-TFT-LCD, wide viewing angle.
- Capacitive touch screen.
Get the high-quality 3.5 inch smart LCM DMG48320C035_03WTR at the best price in India.
Interfacing Diagram of LCM DMG48320C035_03WTR:-
3.5 inch smart LCM DMG48320C035_03WTR Specifications:-
- Color: 16.7M colors
- LCD Type: IPS, TFT LCD
- Resolution: 320×480
- Power Voltage: 4.5~5.5V
- Operation Current: VCC = +5V, Backlight on,130mA , VCC = +5V, Backlight off,40mA
- Output Voltage: Output 1, Iout = 1mA;3.0~3.3 V , Output 0, Iout =-1mA;0~0.3 V
- Interface: UART2: TTL/CMOS UART4: TTL/CMOS（Only available after OS configuration）10Pin_1.0mm latching socket for power supply and serial communication. Download rate(typical value): 12KByte/s
To know more about all latest Products of LCD/LED Display you can visit at www.campuscomponent.com
