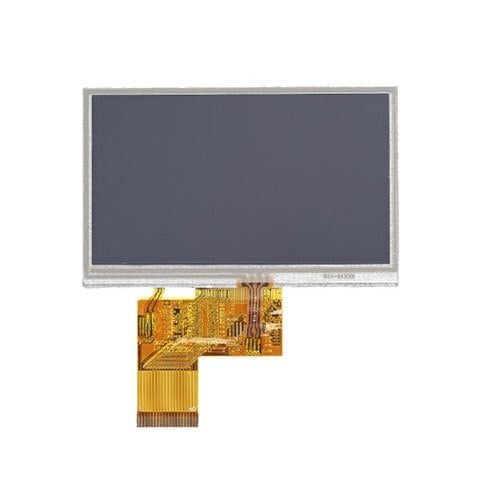

3.5 Inch (S) TFT display Resistive Touch-LC-545-D
Non-returnable
₹1,475.00
SPQ:50,MOQ:1
Product Details
3.5 Inch (S) TFT display Resistive Touch Features:-
- Spec Size : 3.5 inch
- Resolution : 240(RGB) x 320
- Interface : RGB 24 bits Technology type a-si
- TFT Pixel pitch(mm) : 0.219 x 0.219
- Display colors : 16.7M Dithering TFT
- Driver IC: ILI9481
- Viewing Direction : 12 O’ clock
- LCM(W x H x D )(mm) : 76.90 x 64.00 x 4.30(MAX)
- Active Area(mm) : 40.08 x 52.56
- Weight (g) : TBD
- Touch Plane : Resistance
- Supply Voltage IOVCC : -0.3 to +4.6V
- Operating Temperature TOPR : -20 to 70 ℃
- Storage Temperature TSTG : -30 to 80 ℃
Get the high-quality 3.5 Inch (S) TFT display Resistive Touch at the best price in India.
Attachment:-
