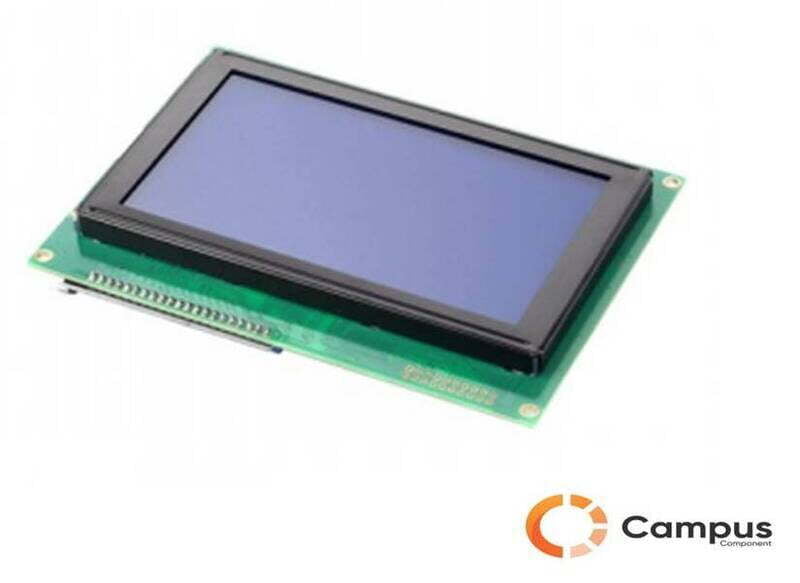

240x128 (S) Blue Backlight LCD Display-LC-558-D
240x128 (S) Blue Backlight LCD Display is an 240 character by 128 lines 240x128vcharacter LCD display. It is available with LED backlight options. This 8x2 LCD module is available in various LCD panel colors including grey, yellow/green and blue LCD options. A 240x128 LCD display is very basic module and is very commonly used in various devices and circuits. These modules are preferred over seven segments and other multi segment LEDs. The reasons being: LCDs are economical; easily programmable; have no limitation of displaying special & even custom characters (unlike in seven segments), animations and so on. Note that the displays expects individual pixels to be turned ON/OFF. It does not support ASCII Inputs like the character display. It may sound like a disadvantage but it is not. It can be used to create beautiful fonts of any sizes you need. You need to store these fonts in the microcontroller and send then to the display.
Get the high-quality 240x128 (S) Blue Backlight LCD Display at the best price in India.
- Display Type: STN Blue Negative/ Transmissive
- Opearating Voltage: Vop- 18V and Vdd- 5V
- Opearating Temp: -20 to +70 degree
- Storage Temp: -30 to +80 degree
- Drive Mode: 1/128 Duty, 1/12 Bias
- Viewing Direction: 6O'clock
- Drive IC: RA6963
- Module dimension:- 144.0 x 104.0 mm
- Viewing area:- 114.0 x 64.0
- Dot size:- 0.40 x 0.40
- Dot pitch:- 0.45 x 0.45
- Mounting hole:- 138.0 x 99.0
- Character size:- n/a
- Unit:- mm
