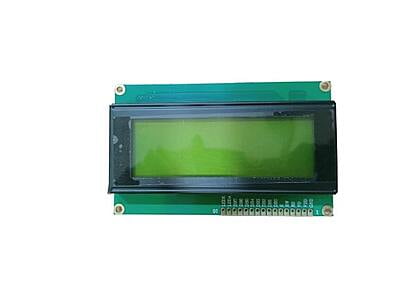

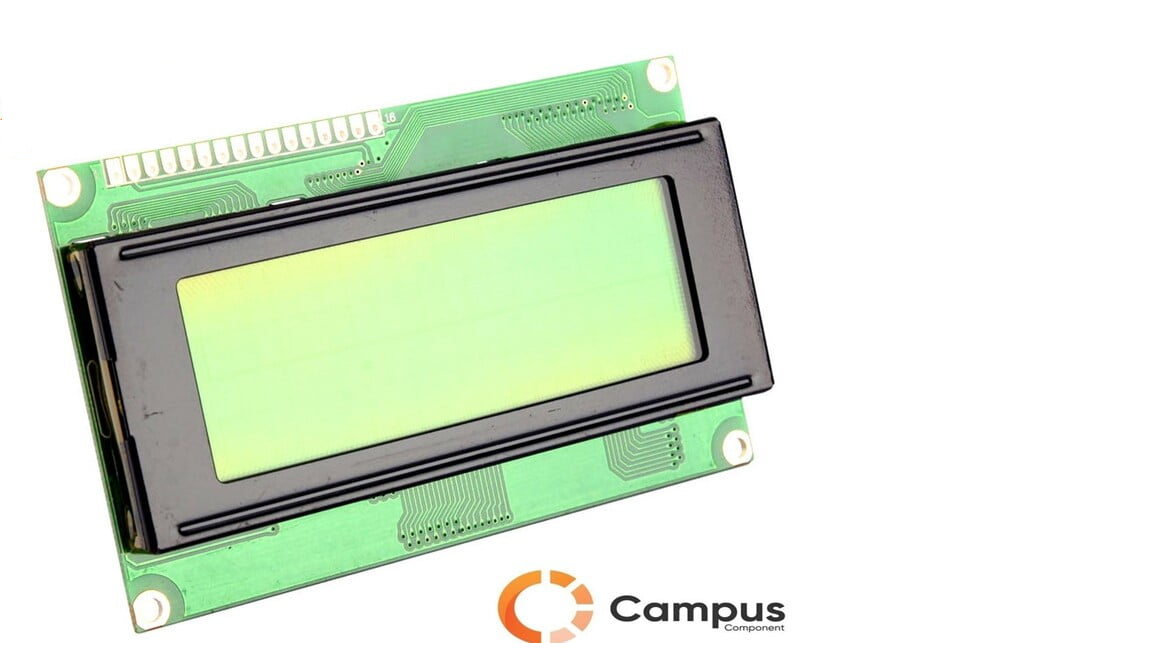

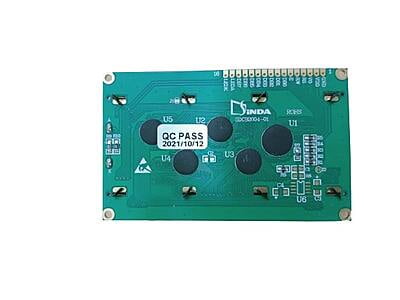

20x4 (S) LCD Yellow Green Backlight-LC-541-D
This is 20×4 Character LCD Display with Yellow/Green Backlight ASCII Alphanumeric Character. 20×4 character LCD Display can be Interface with almost All Digital Microcontroller such as Arduino, 8051, PIC, AVR, ARM, MSP, COP8, STM, Raspberry Pi etc.4x20 Display also used in Industrial Research and Development R&D, Student Hobby DIY Project. About 20×4 Character LCD Display: 20×4 LCD is a basic 20 character by 4 line display Green/Yellow Back light. Utilizes the extremely common AIP31066 interface chipset. You will need 7 general I/O pins (If use in 4-bit Mode) to interface to this LCD screen. Includes LED Backlight.
Features of 20×4 LCD Display : Commonly Used in: Student Project, Collage, copiers, fax machines, laser printers, industrial test equipment, networking equipment such as routers and storage devices. LCD display module with Green/Yellow Backlight. SIZE: 20×4 (4 Rows and 20 Characters per Row), Can display 4-lines X 20-characters. Operate with 5V DC, Wide viewing angle and high contrast. Built-in industry standard HD44780 equivalent LCD controller. LCM type: Character, Package Contents: 1 X LCD 20×4 with Green, Yellow Backlight.
There is no change code for interfacing standard 16x2 or 20x4 LCD.
- 20 Characters x 4 Lines
- Built-in HD44780 Equivalent LCD Controller
- Works directly with ATMEGA, ARDUINO, PIC and many other microcontroller/kits.
- 4 or 8 bit data I/O interface
- Low power consumption
- SDCB2004-01 Series LCD
- Display Contents :20 * 4 Characters (5*8 dots )
- Driving Scheme : 1/16Duty; 1/5Bias
- Viewing Direction :6 0’ clock
- Driver IC :AIP31066
- Interface :Parallel
- Backlight :White/Yellow-Green
- Operating Temperature :-20 C－﹢70 C
- Storage Temperature :-30 C－﹢80 C
- RoHS Compliant
20x4 (S) LCD Yellow Green Backlight Specifications:-
- Outline Dimensions : 98.00(W) x 60.00(L) x 13.20(H)(mm)
- Viewing Area : 77.00 (W) x 25.20(L)(mm)
- Active Area : 70.40 (W) x 20.80 (L)(mm)
- Character Size : 2.96 (W) x 4.76 (L)(mm)
- Character Pitch : 3.55 (W) x 5.35 (L)(mm)
- Dot Size : 0.56 (W) x 0.56 (L)(mm)
- Dot Pitch : 0.60 (W) x 0.60 (L)(mm)
- Weight : TBD
20x4 (S) LCD Yellow Green Backlight- Datasheet
