20x4 (S) LCD Blue Backlight Display-LC-542-D
Non-returnable
₹300.00
SKU
LC-542-D SPQ
224 MOQ
1 Visible Manufacture Name
SINDA Visible Manufacturer’s code
SDCB2004-01A Weight (gm)
0.09kgStock Available
5092 Choose Quantity
Product Details

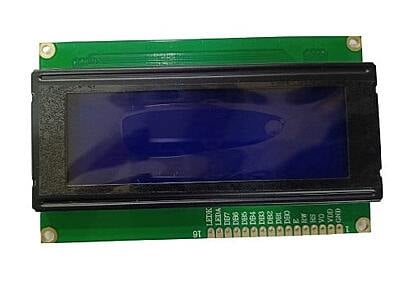

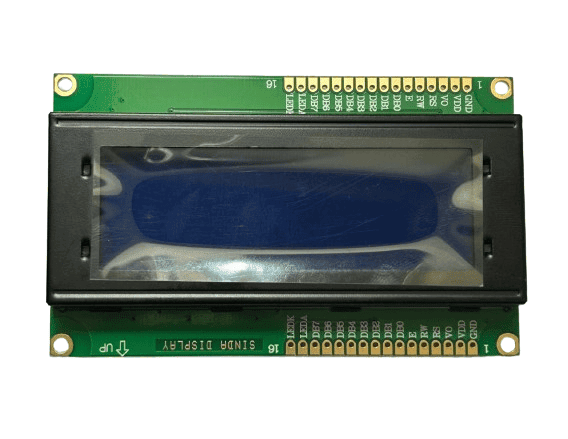

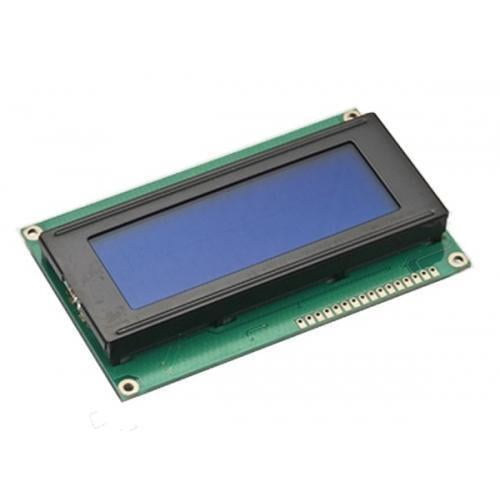

This is 20×4 Character LCD Display with Blue Backlight ASCII Alphanumeric Character. 20×4 character LCD Display can be Interface with almost All Digital Microcontroller such as Arduino, 8051, PIC, AVR, ARM, MSP, COP8, STM, Raspberry Pi etc. 4x20 Display also used in Industrial Research and Development R&D, Student Hobby DIY Project. About 20×4 Character LCD Display: 20×4 LCD is a basic 20 character by 4 line display Blue White Back light.
Get the high-quality 20x4 (S) LCD Blue Backlight Display at the best price in India.
Utilizes the extremely common AIP31066 interface chipset. You will need 7 general I/O pins (If use in 4-bit Mode) to interface to this LCD screen. Includes LED Backlight. Features of 20×4 LCD Display : Commonly Used in: Student Project, Collage, copiers, fax machines, laser printers, industrial test equipment, networking equipment such as routers and storage devices. SIZE: 20×4 (4 Rows and 20 Characters per Row), Can display 4-lines X 20-characters. Operate with 5V DC, Wide viewing angle and high contrast. Built-in industry standard HD44780 equivalent LCD controller. LCM type: Character, Package Contents: 1 X LCD 20×4.

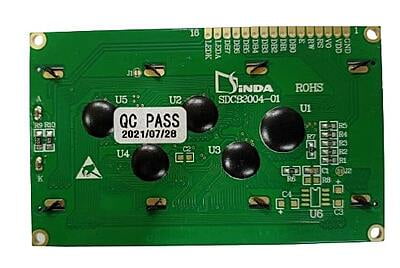

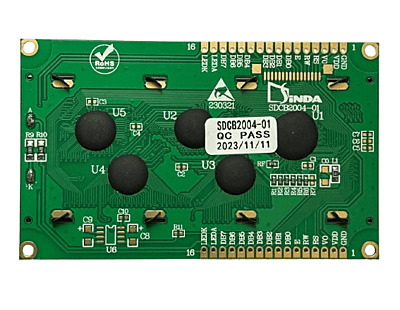

- SDCB2004-01 Series LCD
- Display Contents :20 * 4 Characters (5*8 dots )
- Driving Scheme : 1/16Duty; 1/5Bias
- Viewing Direction :6 0’ clock
- Driver IC :AIP31066
- Interface :Parallel
- Backlight : Blue Backlight
- Operating Temperature :-20 C－﹢70 C
- Storage Temperature :-30 C－﹢80 C
- RoHS Compliant
20x4 (S) LCD Blue Backlight Display Specification:-
- Outline Dimensions : 98.00(W) x 60.00(L) x 13.20(H)(mm)
- Viewing Area : 77.00 (W) x 25.20(L)(mm)
- Active Area : 70.40 (W) x 20.80 (L)(mm)
- Character Size : 2.96 (W) x 4.76 (L)(mm)
- Character Pitch : 3.55 (W) x 5.35 (L)(mm)
- Dot Size : 0.56 (W) x 0.56 (L)(mm)
- Dot Pitch : 0.60 (W) x 0.60 (L)(mm)
- Weight : TBD
Explore all the Latest Products of Sinda LCD Display
