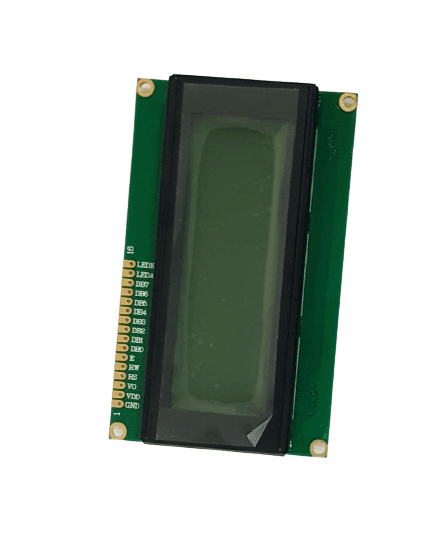

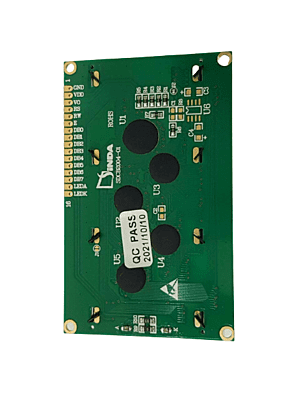

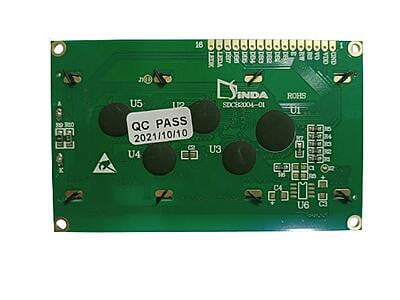

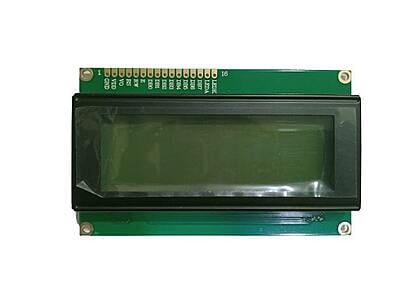

20x4(S) Black/White Backlight 80 degree-LC-1545-D
₹400.00
SKU
LC-1545-D SPQ
224 MOQ
1 Visible Manufacture Name
SINDA Display Visible Manufacturer’s code
SDCB2004SG-01 Weight (gm)
0.09kgStock Available
1086 Choose Quantity
Product Details
FUNCTIONS & FEATURES:
- SDCB2004SG-01 Series LCD
- Display Contents : 20 * 4 Characters (5*8 dots )
- Driving Scheme : 1/16Duty; 1/5Bias
- Viewing Direction : 6 0’ clock
- Driver IC : AIP31066
- Interface : Parallel
- Backlight :White
- Operating Temperature :-20℃-﹢80℃
- Storage Temperature :-30℃-﹢85℃
- RoHS Compliant
MECHANICAL SPECIFICATIONS:
- Outline Dimensions : 98.00(W) x 60.00(L) x 13.20(H)(mm)
- Viewing Area : 77.00 (W) x 25.20(L)(mm)
- Active Area : 70.40 (W) x 20.80 (L)(mm)
- Character Size : 2.96 (W) x 4.76 (L)(mm)
- Character Pitch : 3.55 (W) x 5.35 (L)(mm)
- Dot Size : 0.56 (W) x 0.56 (L)(mm)
- Dot Pitch : 0.60 (W) x 0.60 (L)(mm)
ATTACHMENT :
