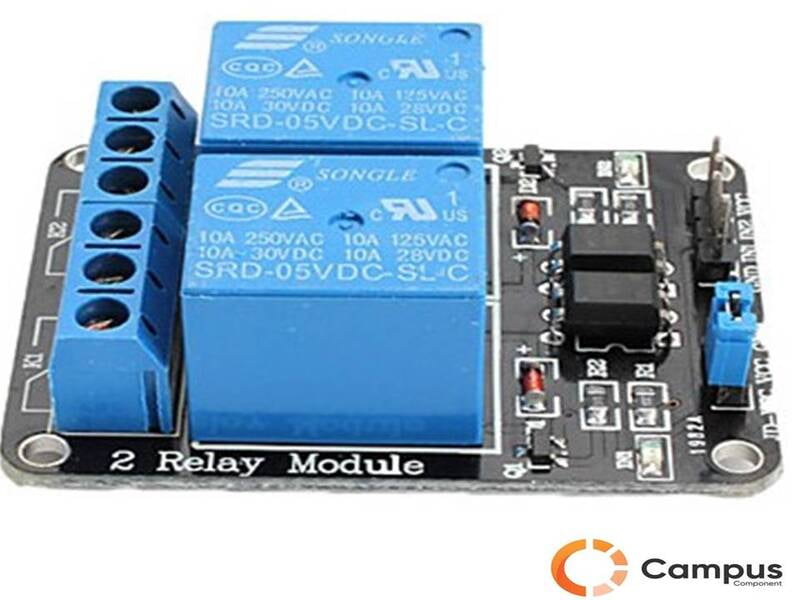

2 Channel Relay Module with light coupling 5V-AR-827-D
5V 10A 2 Channel Relay Module Shield for Arduino ARM PIC AVR DSP Electronic relay the item is a 24v 2-channel relay interface board, It can be controlled directly by a wide range of microcontrollers such as Arduino, AVR, PIC, ARM and so on. If you have ever had a project that required an interface with a high power device that needed AC or DC voltage and high current levels you have probably already discovered that attempting to control those devices directly with your Arduino, Raspberry PI, or other Microcontroller/Microprocessor can be a real challenge. This board is designed to interface easily with your 5V IOs without consuming much current on your IO pins.
Get the high-quality 2 Channel Relay Module with light coupling 5V at the best price in India.
2 Channel Relay Module with light coupling 5V Specifications:-
- Relay contact capacity 250V10A.
- Relay output normally open, normally closed;
- Low level valid. 5V relay signal input voltage range: 0-5V;
- VCC power to the system. JD-VCC relay in the power supply.
- PCB Color: Black
- Board with four screws holes, hole diameter 3.1mm, easy to install and fix
- Relay of high quality loose music relays SPDT. A common terminal, a normally open, one normally closed terminal
- Optocoupler isolation, good anti-jamming
- Low pull, high release. Energisation status indicator light, release status LED is off
- VCC of system power, JD_VCC relay power. You can plug in jumpers
