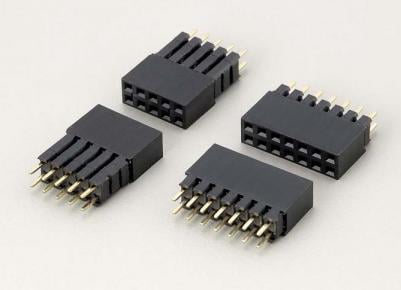

2.54mm Pitch Female Header Connector KLS1-208-1-8 - CO-2358-D
₹3.00
Product Details
2.54mm Pitch Female Header Connector KLS1 Product Info:-
2.54mm Pitch Female Header Connector KLS1 Material:-
- 1-Single layer 2-Double layer
- XX-Total pin number (No.of 180pin)
- S-Straight Pin T-SMT Pin
- Material:A=PBT B=PA6T C=LCP
Get the high-quality 2.54mm Pitch Female Header Connector KLS1 at the best price in India.
2.54mm Pitch Female Header Connector KLS1 Material:-
- Housing: 30% Glass filled PBT / PA6T UL94V-0
- Contacts: Brass or Phosphor Bronze
Plating: Au or Sn over 50u" Ni
2.54mm Pitch Female Header Connector KLS1 Electrical Characteristics:-
- Current Rating: 3 AMP
- Insulator Resistance: 1000M Ohm min. at DC 1000V
- Contact Resistance: 20m Ohm max.
- Operating Temperature: -40ºC~+105ºC
To know more about all latest Products of BERG Connector you can visit at www.campuscomponent.com
