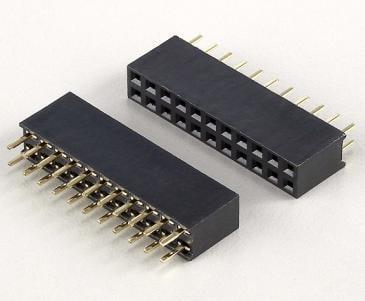

2.54mm Pitch Female Header Connector KLS1-208-1-20 - CO-2356-D
Out of stock
₹5.00
SKU
1 SPQ
200 MOQ
1 Visible Manufacture Name
KLS Electronics Visible Manufacturer’s code
L-KLS1-208-1-20-S Weight (gm)
0.0019 Brand/MFR No
KLS Electronics/L-KLS1-208-1-20-S Product Details
2.54mm Pitch Female Header Connector KLS1 Product Info:-
- 1-Single layer 2-Double layer 3-Three layer
- XX-Total pin number (No.of 1~80pin)
- S-Straight Pin R-Right Angle Pin T-SMT Pin
- Material: A=PBT B="PA6T" C="LCP
2.54mm Pitch Female Header Connector KLS1 Material:-
- Housing: 30% Glass filled PBT / PA6T UL94V-0
- Contacts: Brass or Phosphor Bronze
- Plating: Au or Sn over 50u" Ni
- Electrical Characteristics:
- Current Rating: 3 AMP
- Insulator Resistance: 1000M Ohm min. at DC 1000V
- Contact Resistance: 20m Ohm max.
- Operating Temperature: -40ºC~+105ºC
To know more about all latest Products of BERG Connector you can visit at www.campuscomponent.com
