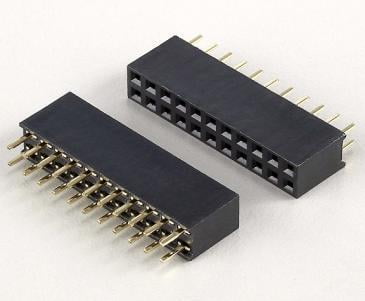

2.54mm Pitch Female Header Connector Height 8.5mm Y terminal KLS1-208-1-40-S-B - TB-2544-D
Out of stock
₹3.00
Visible Manufacture Name
KLS1-208-1-40-S-B Visible Manufacturer’s code
KLS1-208-1-40-S-B Brand/MFR No
KLS1-208-1-40-S-B KLS1-208-1-40-S-B Product Details
2.54mm Pitch Female Header Connector Height 8.5mm Product Info:-
- KLS1-208-1-XX-R-A
- 1-Single layer 2-Double layer 3-Three layer
- XX-Total pin number (No.of 1~80pin)
- S-Straight Pin R-Right Angle Pin T-SMT Pin
- Material:A=PBT B="PA6T" C="LCP
Get the high-quality 2.54mm Pitch Female Header Connector Height 8.5mm at the best price in India.
2.54mm Pitch Female Header Connector Height 8.5mm Material:-
- Housing: 30% Glass filled PBT / PA6T UL94V-0
- Contacts: Brass or Phosphor Bronze
- Plating: Au or Sn over 50u" Ni
2.54mm Pitch Female Header Connector Height 8.5mm Electrical Characteristics:-
- Current Rating: 3 AMP
- Insulator Resistance: 1000M Ohm min. at DC 1000V
- Contact Resistance: 20m Ohm max.
- Operating Temperature: -40ºC~+105ºC
