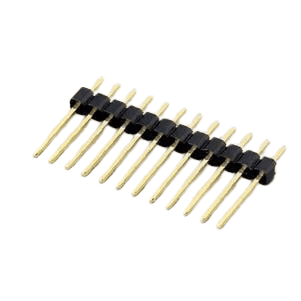

2.54mm Male Pin Header Connector KLS1 - CO-1901-D
Out of stock
₹4.50
SPQ
200 MOQ
1 Visible Manufacture Name
KLS Electronics Visible Manufacturer’s code
KLS1-207-2-40 Weight (gm)
0.0025 Brand/MFR No
KLS Electronics/KLS1-207-2-40 Product Details
2.54mm Male Pin Header Connector KLS1 Material:-
- Housing: PA6T UL94V-0
- Contacts: Brass
- Plating: Gold plated: 0.8u" over 50u" nickel
2.54mm Male Pin Header Connector KLS1 Electrical Characteristics:-
- Current Rating: 3 AMP
- Insulator Resistance: 1000M Ohm min.
- Contact Resistance: 20m Ohm max.
- Withstanding Voltage: AC 500V/Minute
Operating Temperature: -45ºC~+105ºC
