2.50mm Molex 5264 type Wire to Board Connector - CO-1908-D
₹1.00
SPQ
1000 MOQ
1 Visible Manufacture Name
UBINTEX Visible Manufacturer’s code
UBX-XL4-2.50 Weight (gm)
0.00022 Brand/MFR No
UBINTEX/UBX-XL4-2.50Stock Available
805 Choose Quantity
Product Details

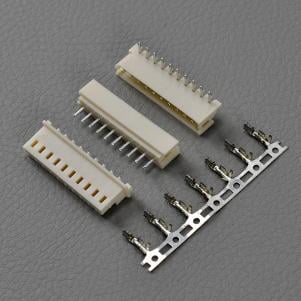

2.50mm Molex 5264 type Wire to Board Connector Product Info:-
- Pitch:2.50mm
- XX-No.of 02~16 pins
- H-Housing T-Terminal S-Straight male pin R-Right angle male pin
2.50mm Molex 5264 type Wire to Board Connector Specifications:-
- Material: PA66 UL 94V-0
- Contact : Brass
- Finish : Plated Tin over Nickel
- Current rating:3.0A AC,DC
- Voltage rating:250V AC,DC
- Temperature range:-45℃~+105℃
- Insulationresistance:1000MΩ Min.
- Withstanding voltage:1000V AC minute
- Contact resistance:20mΩ Max.
- Wire range : AWG#22~#28
