16x2 (S) LCD Yellow Green Backlight-LC-534-D

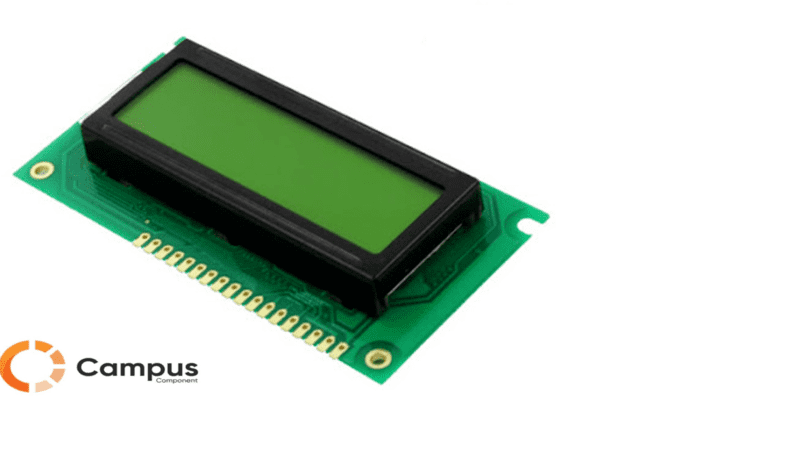

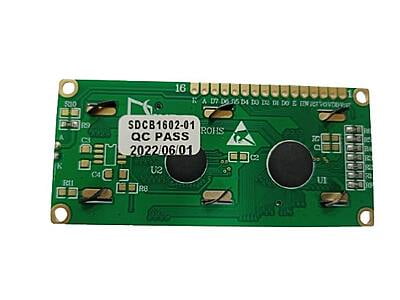

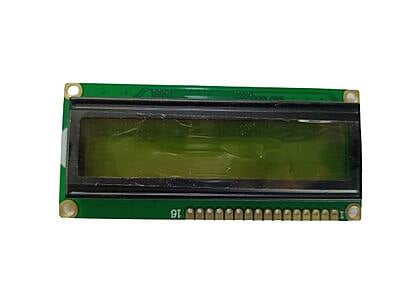

LCD1602 (yellow-green screen) Standard 16X2 LCD character module (backlight / yellow-green) 1602 standard 16-pin interface, including: VSS is the ground power, VDD then 5V positive power supply. V0 LCD contrast adjustment end, then the positive power supply when the contrast is the weakest, the highest contrast when grounded power, the contrast is too high will have a "ghosting", when used by a 10K potentiometer to adjust the contrast. RS for the register selection, high-level data register selection, low-level instruction register selection.
Get the high-quality 16x2 (S) LCD Yellow Green Backlight at the best price in India.
R / W for the read and write signal lines, high-level read operation, and low-level write operation. When RS and RW together low can write instruction or display address, when RS is low, RW is high, you can read busy signal, when RS is high, RW is low, and you can write data. E end is enable end, when E end jumps from high level to low level, the liquid crystal module carries out the order. D0 ~ D7 for the 8-bit bidirectional data lines.
16x2 (S) LCD Features:-
- Display Contents :16 * 2 Characters (5*8 dots )
- Driving Scheme : 1/16Duty; 1/5Bias
- Viewing Direction :6 0’ clock
- Driver IC :AIP31066
- Interface :Parallel
- Backlight :white/Yellow-Green
- Operating Temperature :-20 C－﹢70 C
- Storage Temperature :-30 C－﹢80 C
- RoHS Compliant
- LCD Size : 80 x 36
- Viewing Area : 64 x 16
- Dot Size : 0.55 x 0.66
- Dot Pitch : 0.60 x 0.70
- Character Size : 2.96 x 5.56
- Character Pitch : 3.55 x 5.94
- LCD Thickness : 9.5
- Unit : mm
