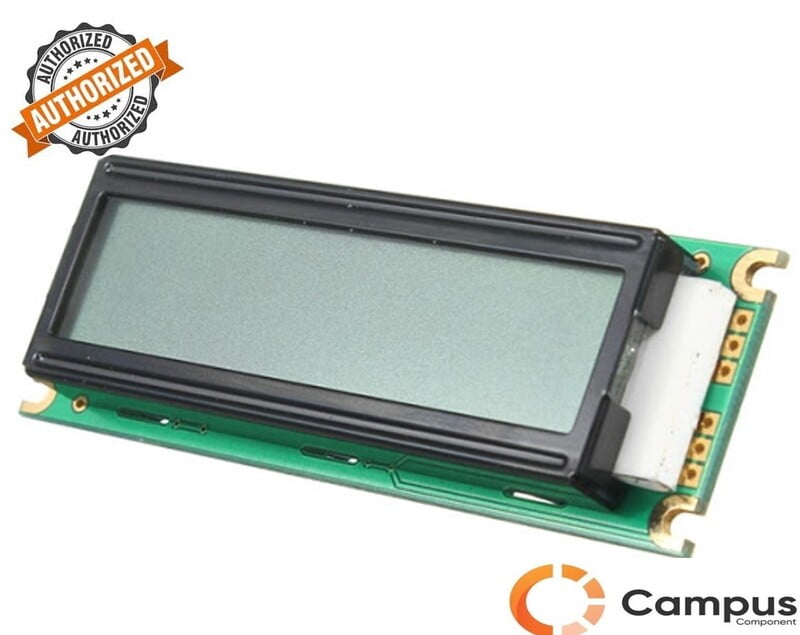

16x2 (S) Jumbo Character LCD White/ Black Backlight-LC-1221-D

1. FUNCTIONS & FEATURES

• SDCB1602-10 Series LCD
• Display Contents :16 * 2 Characters (5*8 dots )
• Driving Scheme :1/16Duty; 1/5Bias
• Viewing Direction : 6 0’ clock
• Driver IC : AIP31066
• Interface : Parallel
• Backlight : Yellow-Green
• Operating Temperature :-20 －﹢70 ℃
• Storage Temperature :-30 －﹢80 ℃
• RoHS Compliant

2. MECHANICAL SPECIFICATIONS

• Outline Dimensions : 122.00(W) x 44.00(L) x 14.00(H)(mm)
• Viewing Area : 99.00 (W) x 24.00(L)(mm)
• Active Area : 94.80 (W) x 19.90 (L)(mm)
• Character Size : 4.80 (W) x 7.95 (L)(mm)
• Character Pitch : 6.00 (W) x 8.55 (L)(mm)
• Dot Size : 0.88 (W) x 1.05 (L)(mm)
• Dot Pitch : 0.98 (W) x 1.15 (L)(mm)
• Weight : TBD
