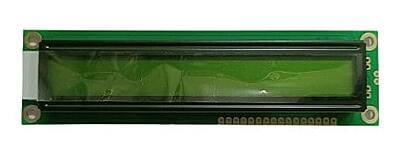

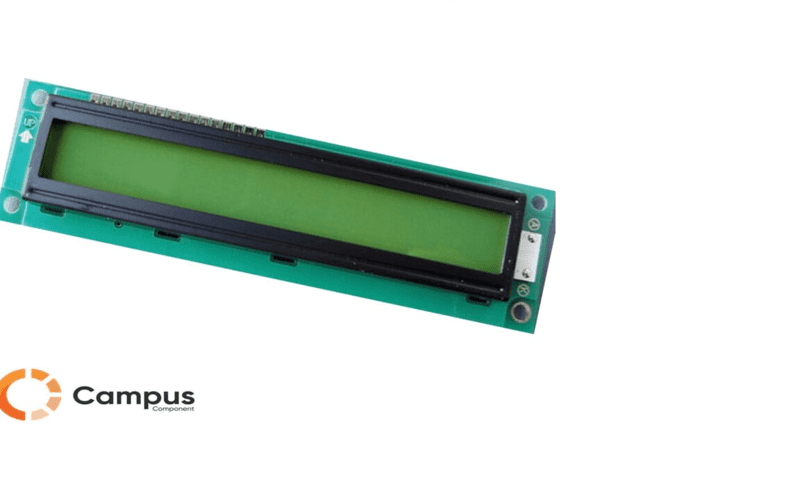

16x1(S) COB Jumbo Character Yellow Green-LC-1546-D
Choose Quantity
16x1(S) COB Jumbo Character Yellow Green Display is professional manufacturer of Monochrome LCD display for Industry application, include digital panel meter, UPS, inverter, multi-function meter, POS machines, Fuel Dispenser, Oil Dispenser, Gas Dispenser, Flow Meter, KWH Meter, Energy Meter, Water Meter, Gas Meter, Smart Meter, Clock. LCD technology is to fill the liquid crystal between two planes with narrow grooves. The grooves on these two planes are perpendicular to each other (intersecting at 90 degrees). If the molecules on one plane are arranged from north to south, the molecules on the other plane are arranged from east to west, and the molecules between the two planes are forced into a 90-degree twisted state. Since the light travels in the direction of the molecular arrangement, the light is also twisted 90 degrees when passing through the liquid crystal.
Get the high-quality 16x1(S) COB Jumbo Character Yellow Green at the best price in India.
- LCD Type: STN, Transmissive Positive
- Operating Voltage: Vdd-5V
- Viewing Direction: 6O'Clock
- Drive Method: 1/16 Duty, 1/5 Bias
- Operating Temp: -20 c to + 70c
- Storage Temp: -30 to +80c
- Connector Type: Zebra
- Driver IC: AIP31066
- Backlight: Yellow Green

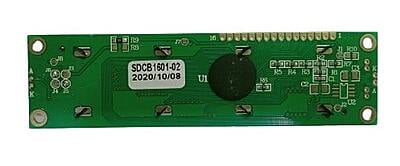

- Model No:- SDCB1601-01
- Outline Dimension(mm):- 80.00 × 36.00 × 13.00
- Viewing Area(mm):- 99.00 × 13.00
- Color available:- Blue, Yellow-green, Grey
- IC:- AIP31066 or Eqv.
- IC Package:- COB
- Interface:- Parallel
