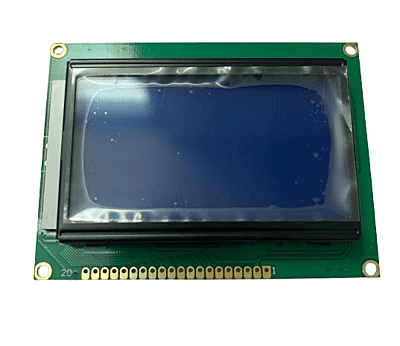

128x64 (S) LCD Blue Backlight Display-LC-544-D
Non-returnable
₹510.00
SKU
LC-544-D SPQ
120 MOQ
1 Visible Manufacture Name
SINDA Visible Manufacturer’s code
SDGB12864-02A Weight (gm)
0.01kgStock Available
2405 Choose Quantity
Product Details
128x64 (S) LCD Blue Backlight Display Features:-
- SDGB12864-02 SERIES TYPE
- STN-Blue Negative Transmissive Mode
- Viewing Direction : 6 O’clock
- Driving Scheme : 1/64Duty, 1/9 Bias
- Power Supply for logic : 5V
- Backlight Color : White
- Display Content : 128*64 Dots
- VLCD : 9.0V
- Operation temperature : -20℃ to +70℃
- Storage temperature : -30℃ to +80℃
Get the high-quality 128x64 (S) LCD Blue Backlight Display at the best price in India.
128x64 (S) LCD Blue Backlight Display Specifications:-
- Module Size : 93.00(L)*70.00 (W)*12.50(H)mm
- Viewing Area : 72.00(L)mm*39.00 (W)mm
- Active Area : 66.52(L)mm*33.24(W)mm
- Dot Pitch : 0.52 (W)mm*0.52 (H)mm
- Dot Size : 0.48(W)mm*0.48 (H)mm
- Dot Gap : 0.04 mm
To know more about all latest Products of LCD/LED Display you can visit at www.campuscomponent.com
Attachment:-
128x64 (S) LCD Blue Backlight Display - Datasheet
