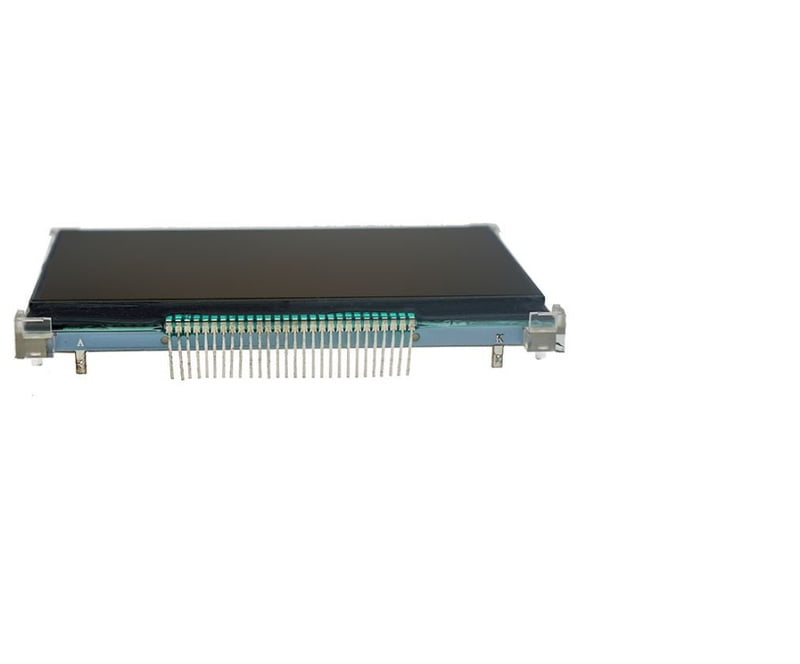

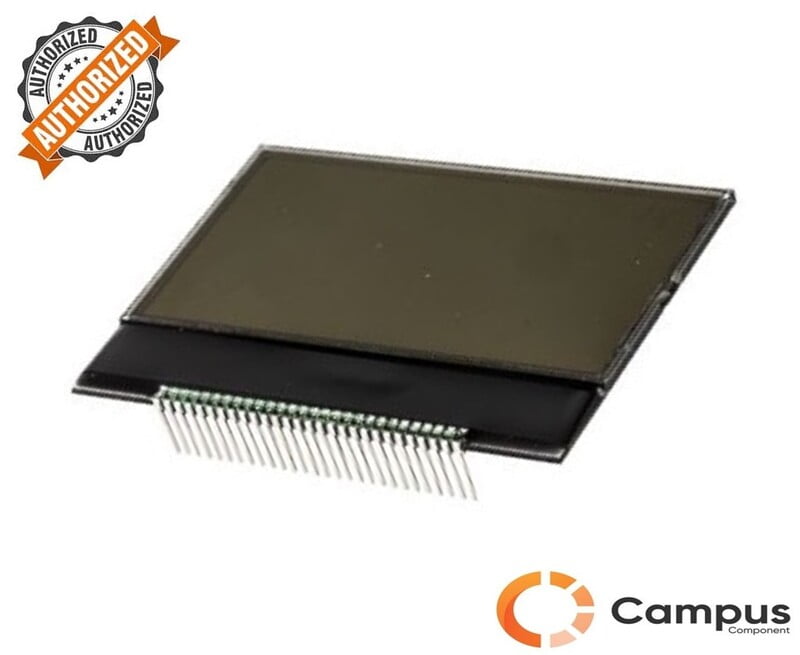

128X64 (S) COG WHITE LCD Display-LC-553-D
Visible Manufacture NameSINDA
Visible Manufacturer’s codeSDGG12864-68 COG White
128X64 (S) COG WHITE LCD Display is made of 128x64 dot matrix format. This COG LCD module is built in with ST7565R IC, it supports 8-bit 6800, and 8-bit 8080 parallel and 4-wire serial SPI interface. The SDGG12864-68 Series is having the same outline dimension, AA size. The power supply (VDD) of SDGG12864-68 Series is 3.3V, VOP 8.5V which are the same as SDGG12864-58/59 Series.
Get the high-quality 128X64 (S) COG WHITE LCD Display at the best price in India.
The SDGG12864-68 Series is an alternative item to replace SDGG12864-68 Series which TAB IC had been phased out. Comparing SDGG12864-58 and SDGG12864-59, the outline dimension, AA size, VA size, interface, pin assignment, main electrical characteristics are all the same. This module can be operating at temperatures from -20℃ to +70℃; its storage temperatures range from -30℃ to +80℃.
128X64 (S) COG WHITE LCD Display Features:-
- SDGG12864-68 Series
- Display Contents :128 x 64 Dots
- Driving Scheme : 1/65Duty; 1/9Bias
- Viewing Direction :6 O’ clock
- Power Supply Voltage : 3.0V.
- Driver IC :ST7565R-G
- Interface :Parallel & SPI
- Backlight :white
- Operating Temperature :-20℃－﹢70℃
- Storage Temperature :-30℃－﹢80℃
- RoHS Compliant
128X64 (S) COG WHITE LCD Display Specifications:-
- Outline Dimensions : 77.40(W) x 52.40(L) x 6.50(H)(mm)
- Viewing Area : 70.00 (W) x 40.00(L)(mm)
- Active Area : 66.52 (W) x 33.24 (L)(mm)
- Dot Pitch : 0.52 (W) x 0.52 (L)(mm)
- Dot Size : 0.48 (W) x 0.48 (L)(mm)
- Weight : 35gm
