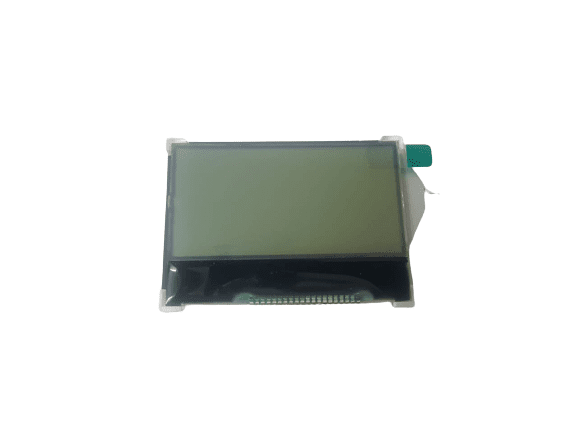

128X64 (S) COG White Display Small Size - LC-1608-D
Non-returnable
₹270.00
SKU
LC-1608-D SPQ
384 MOQ
1 Visible Manufacture Name
SINDA Visible Manufacturer’s code
SDGG12864-58 White Weight (gm)
0.04kg Brand/MFR No
SINDA/SDGG12864-58Stock Available
257 Choose Quantity
Product Details
128X64 (S) COG White Display Small Size Display is professional Monochrome LCD display for Industry application, include digital panel meter, UPS, inverter, multi-function meter, POS machines, Fuel Dispenser, Oil Dispenser, Gas Dispenser, Flow Meter, KWH Meter, Energy Meter, Water Meter, Gas Meter, Smart Meter, Clock. Our COG Graphic LCD Module 128*64 has various different models on shelf and accept custom develop to meet your special requirement. We can develop different interface like I2C, Serial, and we also have different font available.
Get the high-quality 128X64 (S) COG White Display Small Size at the best price in India.
128X64 (S) COG White Display Small Size Features:-
- LCD Type: FSTN, Positive Transflective
- Operating Voltage: Vdd- 3V
- Viewing Direction: 6O'clock
- Drive Method: 1/65 Duty, 1/9 Bias
- Operating Voltage: -20c to +70c
- Storage Temp: -30C to +80C
- Connector Type: COG+20Pin
- Driver IC: ST7567S
- Backlight: White
128X64 (S) COG White Display Small Size Specifications:-
- Model No:- SDGG12864-58
- Outline Dimension(mm):- 63.20x41.70x5.10
- Viewing Area(mm):- 50.00x25.00
- Color available:-Grey, Yellow-green, Blue
- IC:-ST7567
- IC Package:- COG
- Interface:-Parallel/SPI
To know more about all latest Products of LCD Display you can visit at www.campuscomponent.com
