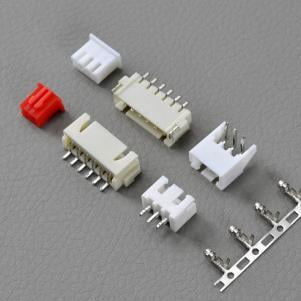

1.25mm Molex 51021 51047 wire to board connector - CO-1917-D
₹1.00
SPQ
1000 MOQ
100 Visible Manufacture Name
UBINTEX Visible Manufacturer’s code
UBX-XL1-1.25 Weight (gm)
0.000083Stock Available
598 Choose Quantity
Product Details
1.25mm Molex 51021 51047 wire to board connector Electrical Specification:-
- Rated Voltage: 50/250V AC.DC
- Rated Current: 0.7A 2A
- Contact Resistance: 0.02 Ohm max
- Insulation Resistance: 1000M Ohm min
- Withstand voltage: 800V AC/MIN
- Temperature range for usage : -25ºC~+85ºC
- P.C board thickness : 0.8~1.6mm
1.25mm Molex 51021 51047 wire to board connector Material:-
- Housing: PA66 (PA66) UL94V-2
- Contacts: Brass or Phosphor Bronze
- Plating: Tin 50u" over 100u" nickel
- Wire range : AWG#32~#22
- Straight and Right Male pin Material: brass / tin-plated
To know more about all latest Products of 1.25mm Molex 51021 51047 wire to board connector you can visit at www.campuscomponent.com
