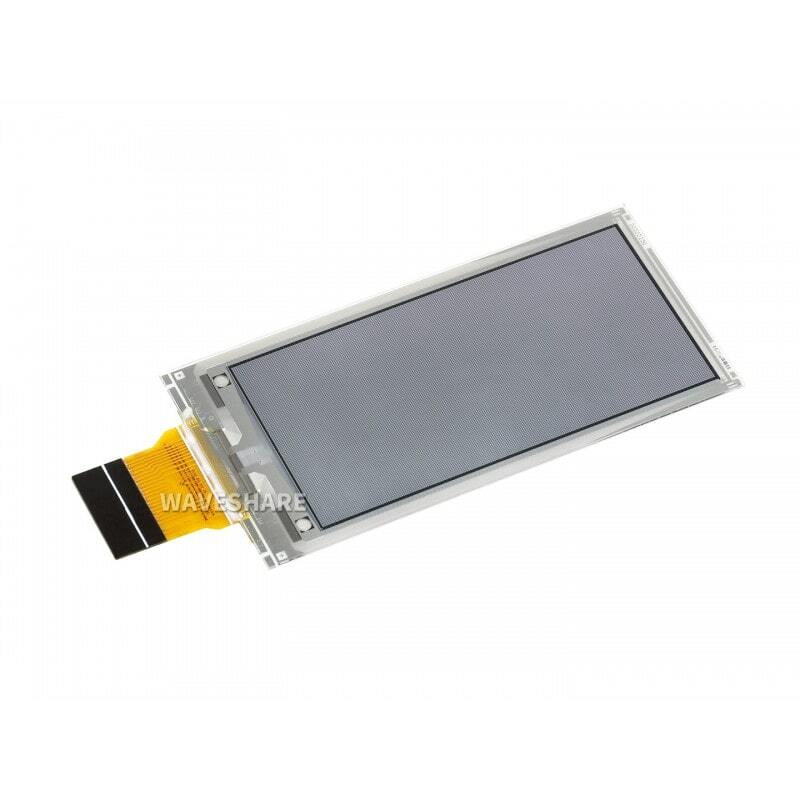

Waveshare 2.13″ E-Paper HAT (B)
Waveshare 2.13″ E-Paper HAT (B)
Waveshare 2.13inch E-Paper HAT (B)
Waveshare 2.13inch E-Paper HAT Display (B)

Waveshare 2.13″ E-Paper HAT (B) - LC-3508-D

₹1,210.00
SPQ: 1, MOQ:1, Product Package:
SPQ
1
MOQ
1
Visible Manufacture Name
Waveshare
Visible Manufacturer’s code
2.13″ E-Paper HAT (B)-13448
Weight (gm)
0.3kg
Brand/MFR No
Waveshare/2.13″ E-Paper HAT (B)-13448
Quantity
Add to Cart
Product Details

Waveshare 2.13″ E-Paper HAT (B) with Resolution 250 × 122. It has Interface 3-wire SPI, 4-wire SPI and Ultra-low power consumption, basically power is only required for refreshing. It Comes with development resources and manual (driver board schematic, examples for Raspberry Pi/Jetson Nano/Arduino/STM32).


Get the high-quality Waveshare 2.13″ E-Paper HAT (B) at the best price in India.


Waveshare 2.13″ E-Paper HAT (B) Features:-

  • Operating voltage: 3.3V
  • Interface: 3-wire SPI, 4-wire SPI
  • Outline dimension: 29.2mm × 59.2mm × 0.98mm
  • Display size: 23.71mm × 48.55mm
  • Dot pitch: 0.229 × 0.228
  • Resolution: 250 × 122
  • Display color: red, black, white
  • Grey level: 2
  • No backlight, keeps displaying last content for a long time even when power down
  • Ultra low power consumption, basically power is only required for refreshing
  • Comes with development resources and manual (driver board schematic, examples for Raspberry Pi/Jetson Nano/Arduino/STM32)
