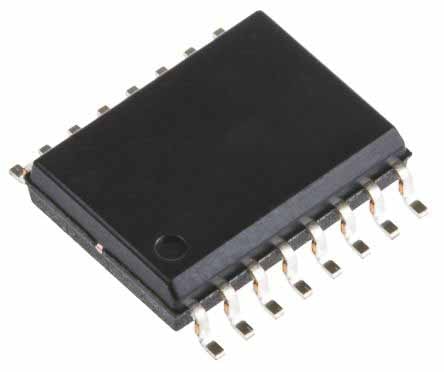

Puya Semiconductor SPI NOR Flash Memory PY25Q01GHB-SMH-IR - PO-3815-D
₹540.00
SPQ: 4000, MOQ:1, Product Package: SOP16 ( 300 Mil )
SPQ
4000 MOQ
1 Visible Manufacture Name
Puya Semiconductor Visible Manufacturer’s code
PY25Q01GHB-SMH-IR Brand/MFR No
Puya Semiconductor/PY25Q01GHB-SMH-IRStock Available
31 Choose Quantity
Product Details
The PY25Q512HB is a serial interface Flash memory device designed for a wide variety of high-volume consumer-based applications in which program code is shadowed from Flash memory into embedded or external RAM for execution. The flexible erase architecture of the device, with its page erase granularity, is ideal for data storage as well, eliminating the need for additional data storage devices. The device also contains an additional 3*1024-byte security register with OTP lock (One-Time Programmable), which can be used for purposes such as unique device serialization, system-level Electronic Serial Number (ESN) storage, locked key storage, etc. Specifically designed for use in many different systems, the device supports read, program, and erase operations with a supply voltage range of 2.7V to 3.6V. No separate voltage is required for programming and erasing.
Get the high-quality SPI NOR Flash Memory PY25Q01GHB-SMH-IR at the best price in India.
SPI NOR Flash Memory PY25Q01GHB-SMH-IR Features:-
- Single 2.7 to 3.6V supply
- Industrial Temperature Range -40C to 85C Serial Peripheral Interface (SPI) Compatible: Mode 0 and Mode 3
- Single, Dual, Quad SPI, QPI, DTR - Standard SPI: SCLK, CS#, SI, SO, WP#, HOLD# - Dual SPI: SCLK, CS#, IO0, IO1, WP#, HOLD# - Quad SPI: SCLK, CS#, IO0, IO1, IO2, IO3 - QPI: SCLK, CS#, IO0, IO1, IO2, IO3 - DTR: Double Transfer Rate Read
- Flexible Architecture for Code and Data Storage - Uniform 256-byte Page Program - Uniform 4K-byte Sector Erase - Uniform 32K/64K-byte Block Erase - Full Chip Erase
- Hardware Controlled Locking of Protected Sectors by WP# Pin
- One Time Programmable (OTP) Security Register - 3*1024-Byte Security Registers with OTP Lock
- 128-bit Unique ID for each device
