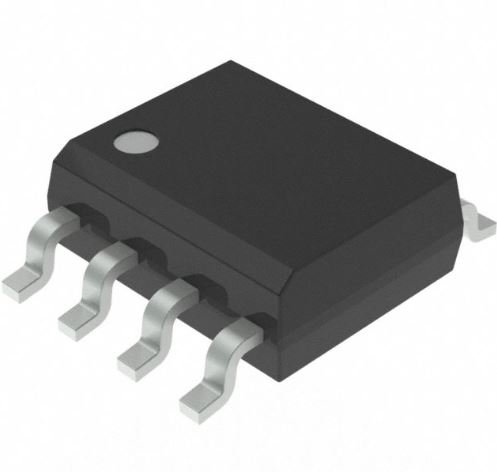

Puya Semiconductor I2C-EEPROM P24CM02Z-SSH-MIR - ME-3985-D
₹15.00
SPQ
4000 MOQ
1 Visible Manufacture Name
Puya Semiconductor Visible Manufacturer’s code
P24CM02Z-SSH-MIR Brand/MFR No
Puya Semiconductor/P24CM02Z-SSH-MIRStock Available
50 Choose Quantity
Product Details
The P24CM02Z is an I2C-compatible Serial EEPROM (Electrically Erasable Programmable Memory) device. It contains a memory array of 2048 Kbits (256 Kbytes) organized in 256 bytes per page.
Get the high-quality I2C-EEPROM P24CM02Z-SSH-MIR at the best price in India.
I2C-EEPROM P24CM02Z-SSH-MIR Features:-
- Single Supply Voltage and High-Speed Mode- Minimum operating voltage down to 1.65V -400kHz/1MHz clock from 1.65 V to 3.6 V -3.4MHz clock from 1.65 V to 3.6 V
- Low-power CMOS technology
- Read current 0.8mA (400kHz, typical)
- Schmitt Trigger, Filtered Inputs for Noise Suppression
- Transparent ECC on each group of four bytes, which can correct 1-bit error
- Sequential & Random Read Features
- Additional write lockable page (Identification page)
- Additional 128 bits Serial Number (Unique ID)
- 256 bytes Page Write Modes, Partial Page Writes Allowed
