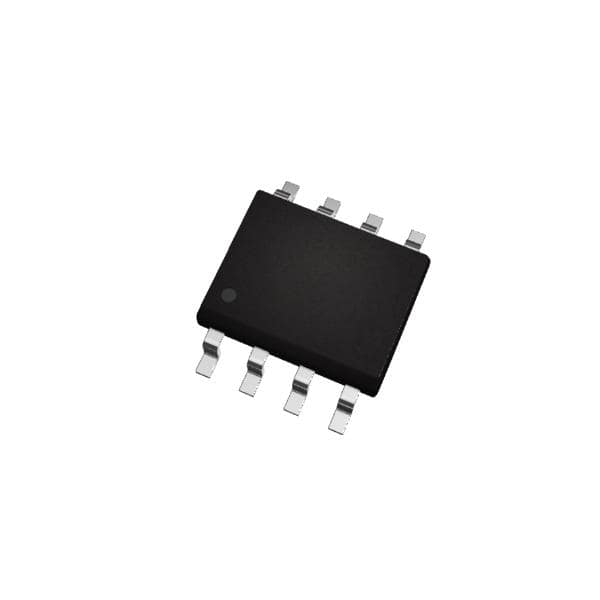

Puya Semiconductor I2C-EEPROM P24CM01-SSH-MIR - ME-3816-D
₹25.50
SPQ
4000 MOQ
1 Visible Manufacture Name
Puya Semiconductor Visible Manufacturer’s code
P24CM01-SSH-MIR Brand/MFR No
Puya Semiconductor/P24CM01-SSH-MIR Choose Quantity
Product Details
The P24CM01H is an I2C-compatible Serial EEPROM (Electrically Erasable Programmable Memory) device. It contains a memory array of 1024 Kbits (128 Kbytes), which is organized in 256 bytes per page.
I2C-EEPROM P24CM01-SSH-MIR Features:-
- Single Supply Voltage and Support Fast and High-Speed Mode
- Minimum operating voltage down to 1.7 V
- 400 kHz/1 MHz clock from 1.7 V to 5.5 V
- 3.4 MHz clock from 1.7 V to 5.5 V
- Low-power CMOS technology
- Schmitt Trigger, Filtered Inputs for Noise Suppression
- Transparent ECC on each group of four bytes which can correct a 1-bit error
- Write protect of the whole memory array
- Additional write lockable page (Identification page)
- Additional 128 bits Serial Number (Unique ID)
- Sequential & Random Read Features
- 256 bytes Page Write Modes, Partial Page Writes Allowed
- Self-timed Write Cycle (5 ms maximum)
